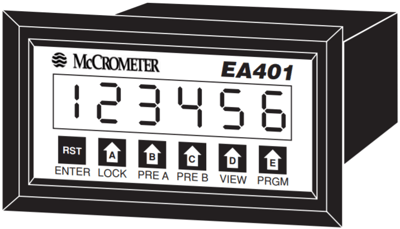

EA401 Totalizer/Ratemeter

Brand: McCrometer, Inc
Does not ship to VA, United States
The CSA Approved non-integrated totalizer and ratemeter each have their own 5 digit dividing scale factor. The two 5 AMP preset relay outputs can be programmed by the user to apply to the “A” total counter or the “A” ratemeter.

The user can view the rate, total and grand total. The B relay can be used to create a scaled pulse output.
Features
  • DC pulse input
  • Separate scaling factors for rate & total
  • Display rate & total
  • Count inhibit input
  • Security lockout
  • Batching capability
  • NEMA 4X / IP65 front panel
  • 4-20 mA Analog output
  • CSA Approved
The CSA Approved non-integrated totalizer and ratemeter each have their own 5 digit dividing scale factor. The two 5 AMP preset relay outputs can be programmed by the user to apply to the “A” total counter or the “A” ratemeter.

The user can view the rate, total and grand total. The B relay can be used to create a scaled pulse output.
Features
  • DC pulse input
  • Separate scaling factors for rate & total
  • Display rate & total
  • Count inhibit input
  • Security lockout
  • Batching capability
  • NEMA 4X / IP65 front panel
  • 4-20 mA Analog output
  • CSA Approved

Specifications

Approvals & Certifications

  • CSA

Enclosure, Body Material

  • ABS Plastic

Environmental Protection

  • IP65
  • IP66
  • NEMA 4X
