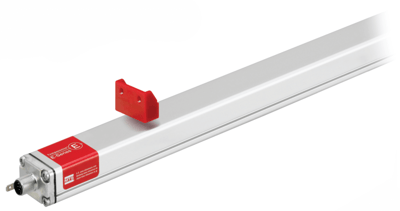

EP2 IO-Link Magnetostrictive Linear Position Sensor
Does not ship to OH, United States
Description
Robust, non-contact and wear free, the Temposonics linear position sensor provide high durability and precise position measurement feedback in harsh industrial environments.
Measurement accuracy is tightly controlled by the quality of the waveguide manufactured exclusively by MTS Sensors. The compact and smooth aluminum profile offers flexible mounting options and easy installation.
Moreover, the position magnet can travel along the entire flat housing profile. The EP2 is ideal for industrial applications including plastics molding and processing, factory automation and packaging.
Temposonics EP2 with IO-Link allows customers to adjust parameters including measuring direction, resolution or offset. In addition, a switching state can be outputted in parallel to the transfer of the position value.
The switching points as well as the switching logic can be parameterized. IO-Link is an open standard according to IEC 61131-9. It is a serial, bi-directional point-to-point connection for signal transmission and energy supply.
The bi-directional communication enables consistent communication between sensors and the controller as well as consistent diagnostic information down to the sensor level.
Specifications
Specifications
Approvals & Certifications
- CE
- EMC Electromagnetic Emission EN 61000-6-3, Immunity EN 61000-6-2
- IEC 61131-9
Communication
- Data Format: 32-bit Signed (Position in μm)
- Data Transmission: COM3 (230.4 Kbps)
- Digital
Consumption
- < 50 mA
Electrical Connectors
- M12 (4-Pin) Male Connector
Electrical Protection
- Overvoltage Protection: up to 36 Vdc
- Polarity Protection: up to -30 Vdc
Environmental Protection
- Ingress Protection: IP67 (If Mating Cable Connector is Correctly Fitted)
Humidity
- 90 % Relative Humidity, Non-Condensing
Length
- Stroke Length: 2 to 100” (50 to 2,540 mm)
Linearity
- ≤ ± 0.02 % of Full Scale (Min. ± 90 µm)
Materials of Construction
- Sensor Lid: Die Cast Zinc
- Sensor Profile: Aluminum
Mounting
- Clamp Mount
Mounting Position
- Any Orientation
Operating Temperature
- -40° to 75° C (-40° to 167° F)
Operating Voltages
- 24 Vdc (± 25 %)
Principle of Operation
- Magnetostrictive Principle
Repeatability
- ≤ ± 0.005 % of Full Scale (Min. ± 20 µm)
Resolution
- 10 µm
- 100 µm
- 20 µm
- 5 µm
- 50 µm
Shock
- 100 G (Single Shock) IEC 60068-2-27
Vibration
- 8 G (10 to 2,000 Hz) IEC 60068-2-6 (Resonance Frequencies Excluded)
Voltage
- Dielectric Strength: 500 Vdc (DC Ground to Machine Ground)
Applications
Applications
- Factory Automation
- Industrial Applications
- Packaging Machines
- Plastics Molding & Processing
