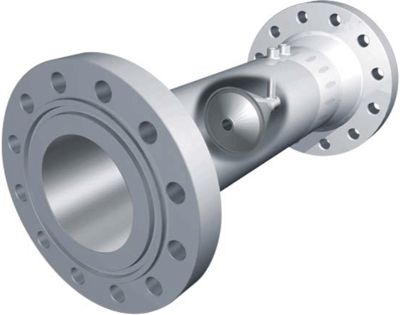

Model VJ V-Cone Flowmeter

Brand: McCrometer, Inc
Does not ship to VA, United States
The V-Cone Flowmeter is a patented, differential pressure type flow measurement device.

A cone is positioned in the center of the pipe to increase the velocity of the flowing fluid and create a differential pressure. This pressure difference can be measured and used to accurately interpret flowrate.

Two taps are provided on every V-Cone to allow sensing of the high and low pressures.
The V-Cone Flowmeter is a patented, differential pressure type flow measurement device.

A cone is positioned in the center of the pipe to increase the velocity of the flowing fluid and create a differential pressure. This pressure difference can be measured and used to accurately interpret flowrate.

Two taps are provided on every V-Cone to allow sensing of the high and low pressures.

Specifications

Approvals & Certifications

  • ISO 9001: 2008
  • TÜV

BSP Connection

  • 1/2” BSPT Female
  • 1/4” BSPT Female

Enclosure, Body Material

  • Carbon Steel
  • Duplex 2205 Stainless Steel
  • Hastelloy C-276
  • Inconel 625
  • Monel K400/K500
  • Stainless Steel

Flange Size - 1-1/2” (DN 40)

  • 1-1/2” (DN 15) - JIS 20K
  • 1-1/2” (DN 40) - JIS 10K

Flange Size - 1” (DN 25)

  • 1” (DN 25) - JIS 10K
  • 1” (DN 25) - JIS 20K

Flange Size - 1/2” (DN 15)

  • 1/2” (DN 15) - JIS 10K
  • 1/2” (DN 15) - JIS 20K

Flange Size - 10” (DN 250)

  • 10” (DN 250) - JIS 10K
  • 10” (DN 250) - JIS 20K

Flange Size - 12” (DN 300)

  • 12” (DN 300) - JIS 10K
  • 12” (DN 300) - JIS 20K

Flange Size - 14” (DN 350)

  • 14” (DN 350) - JIS 10K
  • 14” (DN 350) - JIS 20K

Flange Size - 16” (DN 400)

  • 16” (DN 400) - JIS 10K
  • 16” (DN 400) - JIS 20K

Flange Size - 18” (DN 450)

  • 18” (DN 450) - JIS 10K
  • 18” (DN 450) - JIS 20K

Flange Size - 2-1/2” (DN 65)

  • 2-1/2” (DN 65) - JIS 10K
  • 2-1/2” (DN 65) - JIS 20K

Flange Size - 2” (DN 50)

  • 2” (DN 50) - JIS 10K
  • 2” (DN 50) - JIS 20K

Flange Size - 20” (DN 500)

  • 20” (DN 500) - JIS 10K
  • 20” (DN 500) - JIS 20K

Flange Size - 24” (DN 600)

  • 24” (DN 600) - JIS 10K
  • 24” (DN 600) - JIS 20K

Flange Size - 3” (DN 80)

  • 3” (DN 80) - JIS 10K
  • 3” (DN 80) - JIS 20K

Flange Size - 3/4” (DN 20)

  • 3/4” (DN 20) - JIS 10K
  • 3/4” (DN 20) - JIS 20K

Flange Size - 4” (DN 100)

  • 4” (DN 100) - JIS 10K
  • 4” (DN 100) - JIS 20K

Flange Size - 6” (DN 150)

  • 6” (DN 150) - JIS 10K
  • 6” (DN 150) - JIS 20K

Flange Size - 8” (DN 200)

  • 8” (DN 200) - JIS 10K
  • 8” (DN 200) - JIS 20K

NPT Connection

  • 1/2” NPT Female
  • 1/4” NPT Female

Pipe Schedule

  • Schedule 10 to 160

Size

  • 1/2” to 24”

Welded Connection

  • 1/2” Socket Weld End
  • 1/4” Socket Weld End
