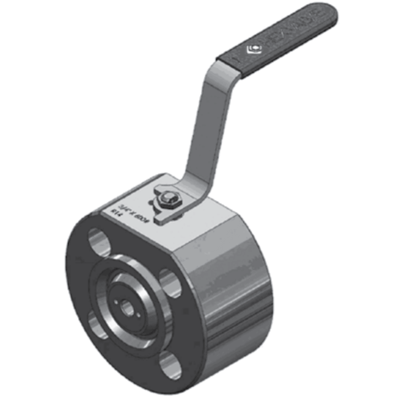

HK02 Series Mono-Ball Valve

Brand: Hex Valve
Does not ship to OH, United States
The Mono Ball Valve design is used for direct shutoff of flow like any ball valve.

The difference is the compact design and light weight.

The valve can be used in conjunction with other valves in series to allow for a safer shutoff creating a double block for safety.

This can also be used with a double block and bleed valve where safety shutoff is of great concern but still allows for a small profile.
Features
  • Small, thin design and light weight
  • Design allows you to combine with other valves in series for safe shutoff
  • Sizes from 1/2" to 2" and from ANSI Class 150# up to ANSI Class 2500# flanges
  • 10 mm through bore
The Mono Ball Valve design is used for direct shutoff of flow like any ball valve.

The difference is the compact design and light weight.

The valve can be used in conjunction with other valves in series to allow for a safer shutoff creating a double block for safety.

This can also be used with a double block and bleed valve where safety shutoff is of great concern but still allows for a small profile.
Features
  • Small, thin design and light weight
  • Design allows you to combine with other valves in series for safe shutoff
  • Sizes from 1/2" to 2" and from ANSI Class 150# up to ANSI Class 2500# flanges
  • 10 mm through bore
Close
Close

Specifications

Brand

Applications

  • Upstream Oil & Gas

Bore Size

  • 0.39” (10 mm)

Enclosure, Body Material

  • 316 Stainless Steel
  • A105 Carbon Steel (Forged)
  • A182 316L Stainless Steel
  • Alloy 20 or Incoloy
  • Duplex A182 F51 Stainless Steel
  • Hastelloy C
  • Incoloy 825
  • Inconel 625
  • Low Temperature Carbon Steel A350 LF2
  • Monel 400

Flange Size - 1-1/2” (DN 40)

  • 1-1/2” (DN 40) - 150#
  • 1-1/2” (DN 40) - 1500#
  • 1-1/2” (DN 40) - 2500#
  • 1-1/2” (DN 40) - 300#
  • 1-1/2” (DN 40) - 600#
  • 1-1/2” (DN 40) - 900#

Flange Size - 1” (DN 25)

  • 1” (DN 25) - 150#
  • 1” (DN 25) - 1500#
  • 1” (DN 25) - 2500#
  • 1” (DN 25) - 300#
  • 1” (DN 25) - 600#
  • 1” (DN 25) - 900#

Flange Size - 1/2” (DN 15)

  • 1/2” (DN 15) - 150#
  • 1/2” (DN 15) - 1500#
  • 1/2” (DN 15) - 2500#
  • 1/2” (DN 15) - 300#
  • 1/2” (DN 15) - 600#
  • 1/2” (DN 15) - 900#

Flange Size - 2” (DN 50)

  • 2” (DN 50) - 150#
  • 2” (DN 50) - 1500#
  • 2” (DN 50) - 2500#
  • 2” (DN 50) - 300#
  • 2” (DN 50) - 600#
  • 2” (DN 50) - 900#

Flange Size - 3/4” (DN 20)

  • 3/4” (DN 20) - 150#
  • 3/4” (DN 20) - 1500#
  • 3/4” (DN 20) - 2500#
  • 3/4” (DN 20) - 300#
  • 3/4” (DN 20) - 600#
  • 3/4” (DN 20) - 900#

Flange Type

  • Raised Face (RF)
  • RTJ - Ring Typical Joint

NACE & NIST

  • NACE

Packing Material

  • Graphite
  • Teflon

Pressure Rating

  • psig: 10,000 (kPa: 68,950, bar: 689.5) at 38° C (100° F) with Carbon PEEK Seat
  • psig: 6,250 (kPa: 43,100, bar: 431) at 38° C (100° F) with Standard PEEK Seat

Seat / Seal Material

  • Seat: Carbon-Filled PEEK
  • Seat: PEEK

Trim Material

  • 316 Stainless Steel
  • 316L Stainless Steel
  • Alloy 20 or Incoloy
  • Duplex Stainless Steel
  • Hastelloy C
  • Incoloy 825
  • Inconel 625
  • Monel
  • Super Duplex Stainless Steel
