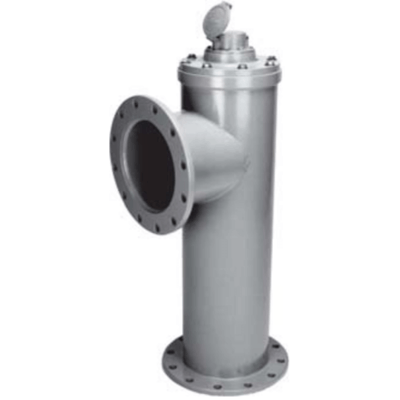

Model VF29 Vertical Upflow Tee Tube Meter

Brand: McCrometer, Inc
Does not ship to VA, United States
McCrometer Model VF29 Vertical Upflow Tee Tube Meters are designed to meet AWWA specifications.

The flanged end tee design permits use in a wide range of applications with up to 150 psi working pressure.

The base and side outlets are 150 lb. AWWA class "D" flat face steel flanges.

Fabricated steel meter tubes have straightening vanes and are protected internally and externally with 12 to 15 mils of NSF approved, fusion epoxy resin.
McCrometer Model VF29 Vertical Upflow Tee Tube Meters are designed to meet AWWA specifications.

The flanged end tee design permits use in a wide range of applications with up to 150 psi working pressure.

The base and side outlets are 150 lb. AWWA class "D" flat face steel flanges.

Fabricated steel meter tubes have straightening vanes and are protected internally and externally with 12 to 15 mils of NSF approved, fusion epoxy resin.

Specifications

Approvals & Certifications

  • AWWA
  • NSF

Bearing Material

  • Interior Bearing: Stainless Steel
  • Propeller Bearing: Ceramic

Enclosure, Body Material

  • Meter Head: Cast Iron
  • Stainless Steel

Materials of Construction

  • Maget: Ceramic
  • Meter Pipe: Steel
  • Propeller Spindle, Separator, Bolt: Stainless Steel
  • Propeller: Thermoplastic

Maximum System Pressure

  • psi: 150 (kPa: 1,000, bar: 10)

Shaft Material

  • Stainless Steel

Size

  • Meter & Pipe Size: 4” to 20”

Temperature Range

  • Maximum 140° F
