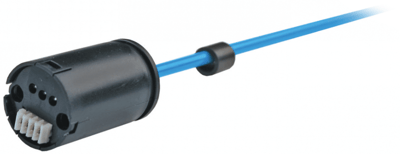

C-Series OEM-Sensor PWM Position Sensor
Does not ship to OH, United States
Description
The OEM sensor is designed as a built-in product.
The sensor is a function of the customer requirements according to the application, and considering the environment, environmental influences, including EMI protection effects.
Features- Contactless measurement – entirely wear-free
- Low weight – ideal for small portable OEM products
- Cost-efficient
- Space-saving – the smallest sensor in the market offers all advantages of magnetostrictive measurement technology
- Low energy requirement – can be operated from 5 Vdc supply
- No wear – no need for periodic re-adjustment
- Available with various position magnets
Specifications
Specifications
Approvals & Certifications
- ISO 9001
Approvals & Certifications
- EMC: Emission EN 61000-6-3 (CISPR 16-2-3, CIPSR 16-2-1), Immunity EN 61000-6-2 (EN 61000-4-2, 3, 4, 5, 6, 8)
Consumption
- Maximum
Electrical Connectors
- Terminal Connection
Electrical Protection
- Overvoltage Protection - CS: up to 19 Vdc Short Term, CM: up to 29 Vdc Short Term
- Polarity Protection Vdc - GND
Enclosure, Body Material
- POM
Environmental Protection
- IP30
Hysteresis
- ± 25 µm
Length
- Stroke Length: 2.8 to 9.8” (72 to 250 mm)
Linearity
- ± 0.15 mm by Means of Magnet 401842 between 5 % & 95 % of Stroke Length
Materials of Construction
- Protective Pipe: Nylon Blue
Mounting
- Screw Mount
Operating Temperature
- -40° to 75° C (-40° to 167° F)
Output Load
- PWM: ≥ 400 W
Principle of Operation
- Magnetostrictive Principle
Repeatability
- ± 25 µm
Shock
- IEC 68-2-27 10 G, 11 milliseconds Single Hit at 1,000 Shocks Per Axis
Storage Temperature
- -20° to 85° C (-4° to 185° F)
Supply Voltage
- CM: 12 Vdc (Tolerance Range 9-15 Vdc)
- CS: 5 Vdc (Tolerance Range 4.75-5.5 Vdc)
Temperature Effect
- ± 0.005 %/°C
Tolerance
- Zero Tolerance: ± 1 mm
Update Time
- 2.6 kHz (0.385 milliseconds)
Vibration
- IEC 60068-2-6 10 G (10 to 2,000 Hz) Sinus (Resonance Frequencies Excluded)
