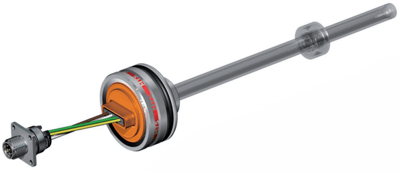

MH-Series MH Safety Magnetostrictive Linear Position Sensor

Brand: Temposonics an Amphenol Company
Does not ship to OH, United States
Temposonics sensors can be used in versatile mobile machines without any restriction and replace contact-based linear sensors like potentiometers.

Highly dynamic systems are controlled safely by means of Temposonics sensors, thus enhancing the productivity, availability and quality of the working process of the machine.

Insensitive to vibration, shocks, dust and weathering influence and electromagnetic disturbances.

Temposonics MH Series sensors are successfully used in front axle and articulated frame steering cylinders, hydraulic jacks and in steering systems for hydraulic units on agricultural and construction machinery.
show more
Temposonics sensors can be used in versatile mobile machines without any restriction and replace contact-based linear sensors like potentiometers.

Highly dynamic systems are controlled safely by means of Temposonics sensors, thus enhancing the productivity, availability and quality of the working process of the machine.

Insensitive to vibration, shocks, dust and weathering influence and electromagnetic disturbances.

Temposonics MH Series sensors are successfully used in front axle and articulated frame steering cylinders, hydraulic jacks and in steering systems for hydraulic units on agricultural and construction machinery.

Specifications

Approvals & Certifications

  • ISO 9001 (DQS), 14982 Agricultural & Forest Machines
  • SIL 2 Certification
  • EN 61508, 50325-5: Bus-Protocol According to CiA DS-304 CANopen Safety, Device Profile DS-406 V3.1
  • EMC EN 13309 Construction Machines, Immunity: ISO 11452-2 (200 V/m Antenna), ISO 11452-4 (200 mA BCI), Emissions: CISPR 25, Transiente Impulses: ISO 7637-1/2, E.S.D.: ISO /TR 10605
  • IEC 61508

Communication

  • Baud Rate: 50 to 1,000 Kbps
  • CANopen

Consumption

  • Current Consumption (12 Vdc): Typical ≤ 100 mA
  • Current Consumption (24 Vdc): Typical ≤ 50 mA

Current

  • Analog Inrush Current: Max.
  • Digital Inrush Current: 1 A / 2 milliseconds - 12 Vdc
  • Digital Inrush Current: 1.5 A / 2 milliseconds - 24 Vdc

Electrical Connectors

  • M12

Electrical Protection

  • Over Voltage Protection (Gnd-Vdc): up to 36 Vdc
  • Polarity Protection Ground-Vdc: up to -36 Vdc

Enclosure, Body Material

  • 303 Stainless Steel

Environmental Protection

  • M12 Connector: EN 60529 (IP69K), Plugged
  • Sensor Housing: EN 60529 (IP67)

Flange Material

  • M12 Flange: Brass Nickel-Plated with O-Ring 13 x 1.6 NBR 70

Humidity

  • EN 60068-2-30, 90 % Relative Humidity, Non-Condensing

Hysteresis

  • ± 0.1 mm

Length

  • Stroke Range: 1.9 to 98.4” (50 to 2,500 mm)

Linearity

  • 2005 to 2500 mm: ≤ ± 0.8 mm
  • 255 to 2,000 mm: ± 0.04 % of Full Scale
  • 50 to 250 mm: ≤ ± 0.1 mm

Load

  • Analog Load (Output mA): 235 to 265 ohms
  • Analog Load (Output Vdc): > 10 kiloohms

Materials of Construction

  • Flange (Ø 48 mm): 303 Stainless Steel 1.4305
  • M12 Connector Insert Pins: Brass with Gold-Plated Pins
  • M12 Connector Insert: Polyamide Reinforces
  • Pressure Pipe (Ø 10 mm): 304L Stainless Steel 1.4306

Mounting Position

  • Any Orientation

O-Ring Material

  • Sealing O-Ring (40.87 x 3.53 mm), M12 Connector Insert (7 x 1.35 mm): NBR 80, 70

Operating Pressure

  • psi: 5,076 (kPa: 35,000, bar: 350) Nominal
  • psi: 6,527 (kPa: 45,000, bar: 450) - Max.
  • psi: 9,065 (kPa: 62,500, bar: 625) Static

Operating Temperature

  • Analog (Electronics): -40° to 105° C (-40° to 221° F)
  • Digital (Electronics): -40° to 100° C (-40° to 212° F)

Output

  • Analog: 0.5-4.5 Vdc
  • Analog: 4-20 mA

Power

  • Analog Power Drain: < 1 W
  • Digital Power Drain: < 1.5 W

Process Temperature

  • -40° to 105° C (-40° to 221° F)

Resolution

  • Analog Typical, Digital (Position): 0.1 mm
  • Digital: 1 mm/sec (Velocity)

Ring Material

  • Back-Up Ring: 42.6 x 48 x 1.4 PTFE

Sample Rate

  • Analog Internal Sample Rate: 2 milliseconds
  • Digital Internal Sample Rate: 1 millisecond

Shock

  • 50 G, 11 milliseconds at 1,000 Shocks Per Axis
  • IEC 60068-2-27, 100 G, 6 milliseconds Single Shock

Storage Temperature

  • -20° to 65° C (-4° to 149° F)

Supply Voltage

  • 12 Vdc (8-32 Vdc)
  • 24 Vdc (8-32 Vdc)

Temperature Range

  • Digital Fluid: -30° to 85° C (-22° to 185° F)

Tolerance

  • Analog Set Point Tolerance: ± 2 mm
  • Digital Set Point Tolerance: ± 0.2 mm

Vibration

  • IEC 60068-2-64, ɛ < ± 1.25 % of Full Scale for 20 G (r.m.s.) 10 to 2,000 Hz

Voltage

  • Dielectric Strength: 500 Vdc (Ground-Vdc)

Applications

  • Harsh Environment
  • Mobile Applications
  • Hydraulics
