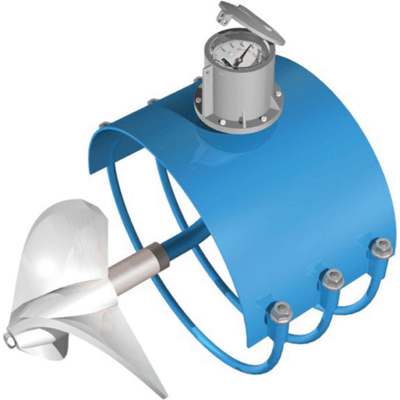

Model M1400 Bolt-On Saddle Flowmeter

Brand: McCrometer, Inc
Does not ship to OH, United States
Model M1400 Bolt-On Saddle Flowmeters are manufactured to comply with the applicable provisions of the American Water Works Association Standard No. C704-02 and latest revisions for propeller type flowmeters.

The M1400 features a fabricated, epoxy-coated, carbon steel saddle with McCrometer’s unique drive and register design. The steel saddle eliminates the fatigue-related breakage common to cast iron and aluminum saddles and provides unsurpassed corrosion protection.

Fabricated steel construction offers the additional advantage of being flexible enough to conform to out-of-true pipe. As with all McCrometer propeller flowmeters, standard features include a magnetically coupled drive, instantaneous flowrate indicator and straight reading, six-digit totalizer.
Model M1400 Bolt-On Saddle Flowmeters are manufactured to comply with the applicable provisions of the American Water Works Association Standard No. C704-02 and latest revisions for propeller type flowmeters.

The M1400 features a fabricated, epoxy-coated, carbon steel saddle with McCrometer’s unique drive and register design. The steel saddle eliminates the fatigue-related breakage common to cast iron and aluminum saddles and provides unsurpassed corrosion protection.

Fabricated steel construction offers the additional advantage of being flexible enough to conform to out-of-true pipe. As with all McCrometer propeller flowmeters, standard features include a magnetically coupled drive, instantaneous flowrate indicator and straight reading, six-digit totalizer.
Close

Specifications

Brand

Bearing Housing Material

  • Brass
  • 304 Stainless Steel
  • 316 Stainless Steel

Bearing Material

  • Ball Bearing: 440C Stainless Steel

Materials of Construction

  • Impeller: High-impact Plastic
  • Maget: Alnico
  • Saddle: Epoxy Coated Carbon Steel

Pressure Rating

  • psi: 75 (kPa: 517, bar: 5.17)

Shaft Material

  • 316 Stainless Steel

Size

  • Meter & Nominal Pipe Size: 18” to 48”
Close

Applications

The McCrometer propeller meter is the most widely used flowmeter for agricultural and turf irrigation measurement. Typical applications include:
  • Golf course and park water management
  • Gravity turnouts for underground pipelines
  • Pump stations
  • Water and wastewater management
  • Sprinkler irrigation systems
  • Drip irrigation systems
