Description

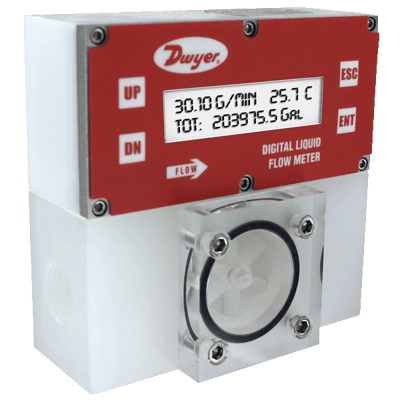

The Series DPW Digital Paddlewheel is an economical choice for applications where remote or local liquid flow measurement is desired.
This Series offers two programmable totalizers via the optional LCD and RS-232/RS-485 interface, two optically isolated flow pulse outputs, and selectable 0 to 5 Vdc or 4 to 20 mA flow outputs (optional temperature).
Features- Jewel bearings allow for smooth rotation with minimal wear and low flow monitoring capability
- Rugged, chemical resistant PVDF lower block material ensures high reliability and longevity for use in harsh environments
- User-friendly interface allows for easy manipulation of the paddlewheel’s many different programmable features including high/low flow (optional temperature alarms), totalizer and flow pulse outputs
- Supports up to 29 engineering units, including user defined ones, making it suitable for a variety of applications
- Flow meter parameters and functions can be programmed remotely via the RS-232/ RS-485 interface or locally via optional LCD/keypad
- Optional temperature measurement with RTD option is ideal for energy monitoring
Configure
Specifications
Specifications
Accuracy
- ± 1 % of Full Scale
Bearing Material
- PVDF
- Sapphire
Communication
- RS-232C, RS-485
Display
- LCD Display 2-Line, 16-Character Per Line, Backlight
Electrical Connectors
- 12-Pin Cable
Environmental Protection
- IP65
Flow Rate
- 0.04 to 35 gpm (0.15 to 132.5 LPM)
Input Signal
- RTD
Load Impedance
- 3,000 ohms Min.
Loop Resistance
- 500 ohms
Media
- Compatible Liquid
NPT Connection
- 1” NPT Female
- 1/2” NPT Female
- 3/4” NPT Female
- 3/8” NPT Female
Options
- LCD/Keypad
Output
- 0-5 Vdc
- 3.3 Vdc: Pulse Output
- 4-20 mA
Power Requirement
- 11-26 Vdc
Pressure Range
- bar: 0 to 10
- kPa: 0 to 1,000
- psi: 0 to 150
Pressure Type
- Gauge
Repeatability
- ± 0.25 % of Full Scale
Response Time
- 1 second - Above 10 % of Full Scale
- 2 seconds - Below 10 % of Full Scale
Seat / Seal Material
- Acrylic
- Buna-N
- Ceramic
- EPDM
- Fluoroelastomer
- Nickel Tungsten Carbide
- PTFE
- PVDF
Temperature Range
- -10° to 60° C (14° to 140° F)
Wetted Materials
- Polypropylene
