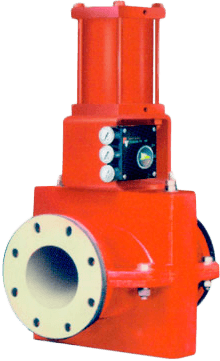

Series 5200 D-Port Control Pinch Valve

Brand: Red Valve Company, Inc
Does not ship to OH, United States
Red Valve's Series 5200 D-Port Control Valve is a highly economical control valve choice.

When fully open, the D-Port has 95% of the flow of a full-ported valve.

Flow control begins immediately, providing a linear flow characteristic.

The D-Port configuration employs a single actuator which closes from the top.

This design shortens the actuator stroke, which in turn reduces operating costs.

An external stroke adjustment is provided.

The rugged elastomer sleeve is self-cleaning, with no packing to maintain and provides accurate, repeatable control.

The Series 5200 D-Port control valve can be furnished with a standard, double wall or cone sleeve design.
Features
  • Provides immediate control response
  • Accurate, repeatable linear flow control
  • Sleeve trim options match flow needs
  • High cycle life, repeatable control
  • Sleeve is the only part in contact with the media
  • Eliminates need for expensive body materials
  • External stroke adjustment
  • Bi-directional, drop-tight shut off
Red Valve's Series 5200 D-Port Control Valve is a highly economical control valve choice.

When fully open, the D-Port has 95% of the flow of a full-ported valve.

Flow control begins immediately, providing a linear flow characteristic.

The D-Port configuration employs a single actuator which closes from the top.

This design shortens the actuator stroke, which in turn reduces operating costs.

An external stroke adjustment is provided.

The rugged elastomer sleeve is self-cleaning, with no packing to maintain and provides accurate, repeatable control.

The Series 5200 D-Port control valve can be furnished with a standard, double wall or cone sleeve design.
Features
  • Provides immediate control response
  • Accurate, repeatable linear flow control
  • Sleeve trim options match flow needs
  • High cycle life, repeatable control
  • Sleeve is the only part in contact with the media
  • Eliminates need for expensive body materials
  • External stroke adjustment
  • Bi-directional, drop-tight shut off
Close

Specifications

Brand

Body Material

  • Ductile Cast Iron

Sleeve Material

  • Pure Gum Rubber, Neoprene, Hypalon, Chlorobutyl, Buna-N, EPDM and Viton

Valve Size

  • 6” to 36”

Drilled and Tapped Flange

  • ANSI B 16.5 Class 150
  • DIN, ASA or BS Standard

Actuator

  • ATO/ATC, ATO/FC, ATC/FO
  • Pneumatic
  • Electric
  • Hydraulic

Operating Pressure

  • 45 to 150 psi
