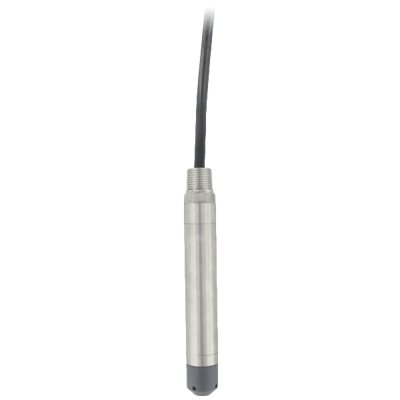

Series SBLT2 & SBLTX Submersible Level Transmitter

Brand: Dwyer Instruments, LLC
Does not ship to United States
The Series SBLT2 & SBLTX Submersible Level Transmitters are manufactured for years of trouble free service.

These series measure the height of liquid above the position in the tank referenced to atmospheric pressure. The transmitter consists of a piezoresistive sensing element, encased in a 316 SS housing.
Features
  • Slim design for tight applications with bullet nose design which protects the diaphragm from damage
  • Incorporates lightning and surge protection utilizing dual arrestor technology, grounded to case, eliminating both power supply surges and lightning ground strike transients (surge protection is not guaranteed and is not covered by warranty) on SBLT2 models
  • Maintenance free filter eliminates particulate or water droplets from entering the transducer
  • UL approved intrinsically safe on SBLTX models for use in hazardous locations when used with proper barrier
  • Excellent chemical compatibility
  • 270 lb tensile strength shielded and vented cable
  • NPT connection allows the unit to be rigidly installed in a pipe/conduit, or the addition of a A-625 hanging loop for attaching a chain for pulling out of the installation
  • Standard 72 hour lead time ensures minimal downtime
show more
The Series SBLT2 & SBLTX Submersible Level Transmitters are manufactured for years of trouble free service.

These series measure the height of liquid above the position in the tank referenced to atmospheric pressure. The transmitter consists of a piezoresistive sensing element, encased in a 316 SS housing.
Features
  • Slim design for tight applications with bullet nose design which protects the diaphragm from damage
  • Incorporates lightning and surge protection utilizing dual arrestor technology, grounded to case, eliminating both power supply surges and lightning ground strike transients (surge protection is not guaranteed and is not covered by warranty) on SBLT2 models
  • Maintenance free filter eliminates particulate or water droplets from entering the transducer
  • UL approved intrinsically safe on SBLTX models for use in hazardous locations when used with proper barrier
  • Excellent chemical compatibility
  • 270 lb tensile strength shielded and vented cable
  • NPT connection allows the unit to be rigidly installed in a pipe/conduit, or the addition of a A-625 hanging loop for attaching a chain for pulling out of the installation
  • Standard 72 hour lead time ensures minimal downtime

Specifications

Accuracy

  • ± 0.25 % of Full Scale

Approvals & Certifications

  • CE
  • cUL

Cable Length

  • 16.40 feet (5 metres)
  • 32.81 feet (10 metres)
  • 40 to 59.06 feet (12.2 to 18 metres)
  • 59.06 feet (18 metres)
  • 60 feet (18.3 metres)

Cable Material

  • ETFE
  • Polyurethane

Compensated Temperature

  • -18° to 80° C (0° to 176° F)

Electrical Connectors

  • Wire Pigtail

Electrical Protection

  • Lightning & Surge Protection - SBLT2

Enclosure, Body Material

  • 316 Stainless Steel

Environmental Protection

  • Class 1, Div. 1, Groups B, C, D
  • Class II, Div. 1, Groups E, F, G
  • Class III, Div. 1, Hazardous Location
  • Intrinsically Safe

Loop Resistance

  • 900 ohms at 30 Vdc, Max.

Media

  • Compatible Liquids

NPT Connection

  • 1/2” NPT Male

Output

  • 4-20 mA, 2-Wire Loop Powered

Power Requirement

  • 10-28 Vdc
  • 13-30 Vdc

Pressure Range

  • bar: 0.3 to 1.7
  • kPa: 34.4 to 176
  • psi: 5 to 25.58

Response Time

  • 50 milliseconds

Temperature Effect

  • ± 0.02 % of Full Scale/°F

Temperature Range

  • -18° to 80° C (0° to 176° F)

Vent Connection Style

  • Tube Fitting

Wetted Materials

  • 316 Stainless Steel
  • 316L Stainless Steel
  • Epoxy
  • PVC

Applications

  • Well Monitoring
  • Ground Water Monitoring
  • Environmental Remediation
  • Surface Water Monitoring
  • Down Hole
  • Water Tanks
