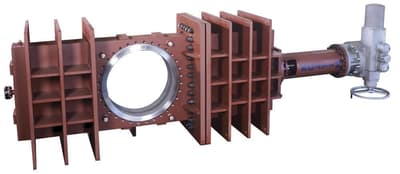

H-1500 Thru-Port Gate Valve

Brand: Hilton
Does not ship to OH, United States
Fabricated Thru-Port bonneted or bonnet-less designs with unobstructed round port or diamond shaped opening for precise flow control.

Can be used for slurries, solids and granular applications. Available with resilient seat for tight shut-off. Click on the animation to the left to see how a Hilton H-1500 Thru-Port Gate Valve is capable of closing through a standing column of dry material.

As the gate slides closed, it carries a slice of the media into the valve body. When the valve slides open, it pulls the slice of media from the body back into the flowing media stream.
Fabricated Thru-Port bonneted or bonnet-less designs with unobstructed round port or diamond shaped opening for precise flow control.

Can be used for slurries, solids and granular applications. Available with resilient seat for tight shut-off. Click on the animation to the left to see how a Hilton H-1500 Thru-Port Gate Valve is capable of closing through a standing column of dry material.

As the gate slides closed, it carries a slice of the media into the valve body. When the valve slides open, it pulls the slice of media from the body back into the flowing media stream.
Close

Specifications

Brand

Abrasive Service

  • Optional Abrasion & Corrosion Resistant Designs with Hard Facing Available in Stellite, Tungsten Carbide, Pulse Fusion.

Materials

  • Valves are available in Solid or Wetted Parts Construction in Any Weldable Alloy, Including Stainless Steel, Hastelloy, Inconel, Monel & Titanium.

Pressure Rating

  • Up to 400 psi

Seating

  • Metal or Resilient with Options for Removable Seat

Size Range

  • Through 48”

Temperature Range

  • Up to 1200° F

Valve Style

  • H-1500 Round Port Valve, H-1500-V Diamond Port Valve
