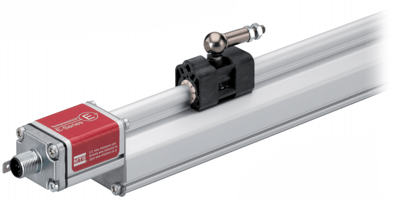

EP/EL IO-Link Magnetostrictive Linear Position Sensor

Brand: Temposonics an Amphenol Company
Does not ship to VA, United States
Robust, non-contact and wear free, the Temposonics linear position sensor provide high durability and precise position measurement feedback in harsh industrial environments.

Measurement accuracy is tightly controlled by the quality of the waveguide manufactured exclusively by MTS Sensors.

The compact Temposonics EP as well as the ultra low Temposonics EL are profile sensors suitable for standard applications and in particularly for applications with limited installation space.

The evaluation electronics is accomodated in an aluminum sensor housing. Typical fields of applications are plastics industry, metal forming and woodworking as well as factory automation.

Temposonics EP / EL with IO-Link allows customers to adjust parameters including measuring direction, resolution or offset. In addition, a switching state can be outputted in parallel to the transfer of the position value.

The switching points as well as the switching logic can be parameterized. IO-Link is an open standard according to IEC 61131-9. It is a serial, bi-directional point-to-point connection for signal transmission and energy supply.

The bi-directional communication enables consistent communication between sensors and the controller as well as consistent diagnostic information down to the sensor level.
show more
Robust, non-contact and wear free, the Temposonics linear position sensor provide high durability and precise position measurement feedback in harsh industrial environments.

Measurement accuracy is tightly controlled by the quality of the waveguide manufactured exclusively by MTS Sensors.

The compact Temposonics EP as well as the ultra low Temposonics EL are profile sensors suitable for standard applications and in particularly for applications with limited installation space.

The evaluation electronics is accomodated in an aluminum sensor housing. Typical fields of applications are plastics industry, metal forming and woodworking as well as factory automation.

Temposonics EP / EL with IO-Link allows customers to adjust parameters including measuring direction, resolution or offset. In addition, a switching state can be outputted in parallel to the transfer of the position value.

The switching points as well as the switching logic can be parameterized. IO-Link is an open standard according to IEC 61131-9. It is a serial, bi-directional point-to-point connection for signal transmission and energy supply.

The bi-directional communication enables consistent communication between sensors and the controller as well as consistent diagnostic information down to the sensor level.

Specifications

Approvals & Certifications

  • CE
  • EMC Electromagnetic Emission EN 61000-6-3, Immunity EN 61000-6-2
  • IEC 61131-9
  • UL 61010-1

Approvals & Certifications

  • ISO 9001 (DQS)
  • QPS (C, US)

Communication

  • Baudrate: 230.4 Kbps (COM3)
  • Digital Interface (Transmission Protocol IO-Link V1.1)

Consumption

  • Current Consumption: < 50 mA

Electrical Connectors

  • M12 (4-Pin) Male Connector

Electrical Protection

  • Overvoltage Protection: up to 36 Vdc
  • Polarity Protection: up to -30 Vdc

Enclosure, Body Material

  • Sensor Electronics: Aluminum

Environmental Protection

  • Ingress Protection: IP67 (If Mating Connectors are Correctly Fitted)

Humidity

  • 90 % Relative Humidity, Non-Condensing

Length

  • Stroke Length: 2 to 100” (50 to 2,540 mm)

Linearity

  • Block Magnet: ≤ ± 0.03 % (Min. ± 90 µm)
  • Magnet Slider, U-Magnet: ≤ ± 0.02 % of Full Scale (Min. ± 60 µm)

Materials of Construction

  • Sensor Profile: Aluminum

Mounting

  • Clamp Mounting

Mounting Position

  • Any Orientation

Operating Temperature

  • -40° to 75° C (-40° to 167° F)

Operating Voltages

  • 24 Vdc (± 25 %)

Principle of Operation

  • Magnetostrictive Principle

Repeatability

  • ≤ ± 0.005 % of Full Scale (Min. 20 µm)

Resolution

  • 10 µm
  • 100 µm
  • 20 µm
  • 5 µm
  • 50 µm

Shock

  • 100 G (Single Shock) IEC 60068-2-27

Update Time

  • Cycle Time: Min. 1 millisecond (Master Dependent)

Vibration

  • 15 G (10 to 2,000 Hz), IEC 60068-2-6 (Resonance Frequencies Excluded)

Voltage

  • Dielectric Strength: 500 Vdc (DC Ground to Machine Ground)

Applications

  • Factory Automation
  • Metal Forming
  • Plastics Industry
  • Wood Working
