Images are representations only.

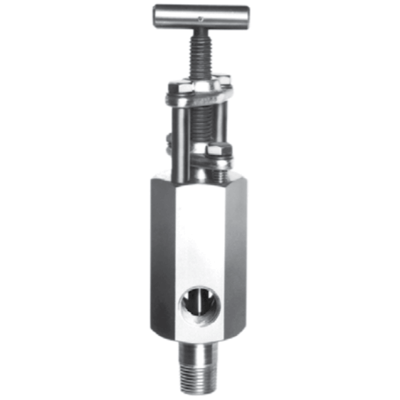

HO25 Series Gauge Valve

Brand: Hex Valve
Does not ship to VA, United States
The HO25 features an OS&Y bolted bonnet, two outlet connections, and two outlet ports.

HO25 is more compact and has a shorter profile then the HG65 models.
Features
  • Compact, Side-by-side Mounting: The slim design of Hex primary block valves allows side-by-side mounting on standard orifice flanges, and reduces the required installation space. The shorter profile and lower weight make these valves ideal for tight installation.
  • Reduce Potential Leakage, Costs: Using Hex primary valves cuts the number of components required on traditional orifice flange installation, resulting in fewer threaded connections and lower installation costs.
  • Non-Rotating Tip (NRT) Stem: Provides tight, repeatable shutoff without galling or cross-scoring that occurs on ball type stems. The NRT conical stem tip stops rotating when it contacts the seat, so further torque turns the stem, but not the tip.
  • VOC Emission Compliance: Unique TFE-Chevron and high temperature 1625G/Grafoil/1625G packing designs have been certified to meet and beat the 100 ppm EPA 1998 Emission standards.
The HO25 features an OS&Y bolted bonnet, two outlet connections, and two outlet ports.

HO25 is more compact and has a shorter profile then the HG65 models.
Features
  • Compact, Side-by-side Mounting: The slim design of Hex primary block valves allows side-by-side mounting on standard orifice flanges, and reduces the required installation space. The shorter profile and lower weight make these valves ideal for tight installation.
  • Reduce Potential Leakage, Costs: Using Hex primary valves cuts the number of components required on traditional orifice flange installation, resulting in fewer threaded connections and lower installation costs.
  • Non-Rotating Tip (NRT) Stem: Provides tight, repeatable shutoff without galling or cross-scoring that occurs on ball type stems. The NRT conical stem tip stops rotating when it contacts the seat, so further torque turns the stem, but not the tip.
  • VOC Emission Compliance: Unique TFE-Chevron and high temperature 1625G/Grafoil/1625G packing designs have been certified to meet and beat the 100 ppm EPA 1998 Emission standards.

Specifications

Enclosure, Body Material

  • Carbon Steel (A105, A108)
  • Stainless Steel (SA-479, 316)

NPT Inlet

  • 1/2” NPT Male
  • 3/4” NPT Male

NPT Outlet

  • 1/2” NPT Female

Packing Material

  • Graphite
  • TFE - Chevron

Seat / Seal Material

  • Seat: 316 Stainless Steel
  • Seat: Stellite

Welded Inlet

  • 1/2” Socket Weld End Male
  • 3/4” Socket Weld End Male
