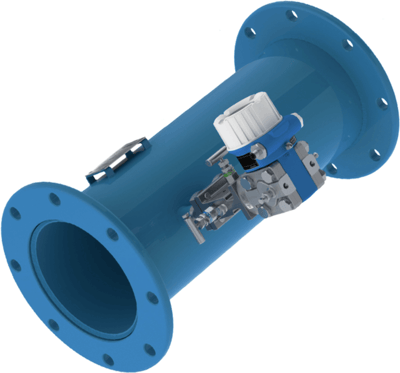

Model VM V-Cone System

Brand: McCrometer, Inc
Does not ship to United States
The VM V-Cone System’s innovative design delivers repeatable accuracy of ±0.5% of rate over a 10:1 flow range under the most difficult flow conditions.

The VM V-Cone System acts as its own flow conditioner, fully conditioning and mixing the flow prior to measurement.

Readings are always precise and reliable, even under changing flow situations. With this unique ability to self-condition flow, the VM V-Cone System virtually eliminates the need for upstream or downstream straight pipe runs.

Thus, the VM V-Cone System can be installed virtually anywhere in a piping system or easily retrofit into an existing piping layout, resulting in significant installation flexibility and cost savings.

In addition, the VM V-Cone System has proven to provide long-term performance with no moving parts to replace or maintain.
Features
  • Plug and play design
  • Installs virtually anywhere in the system - even in tight spaces
  • Displays both rate of flow and total flow. Rate and total functions are independent of each other allowing for many different combinations of flow units
  • Local rate and total display on meter head
  • Remote display available for panel mounting
  • Accuracy of ±0.5% of rate
  • Flow range: 10:1
  • Installation: typically 0 to 3 diameters upstream and 0 to 1 diameter downstream
  • Totalizer pulse and linear 4-20 mA dc outputs
  • No parts to wear so little maintenance required
  • HART™ Interface
  • 3-way manifold for isolating the transmitter
  • Modbus, Profibus, Fieldbus available
  • Offering local and remote mounted displays gives maximum flexibility
show more
The VM V-Cone System’s innovative design delivers repeatable accuracy of ±0.5% of rate over a 10:1 flow range under the most difficult flow conditions.

The VM V-Cone System acts as its own flow conditioner, fully conditioning and mixing the flow prior to measurement.

Readings are always precise and reliable, even under changing flow situations. With this unique ability to self-condition flow, the VM V-Cone System virtually eliminates the need for upstream or downstream straight pipe runs.

Thus, the VM V-Cone System can be installed virtually anywhere in a piping system or easily retrofit into an existing piping layout, resulting in significant installation flexibility and cost savings.

In addition, the VM V-Cone System has proven to provide long-term performance with no moving parts to replace or maintain.
Features
  • Plug and play design
  • Installs virtually anywhere in the system - even in tight spaces
  • Displays both rate of flow and total flow. Rate and total functions are independent of each other allowing for many different combinations of flow units
  • Local rate and total display on meter head
  • Remote display available for panel mounting
  • Accuracy of ±0.5% of rate
  • Flow range: 10:1
  • Installation: typically 0 to 3 diameters upstream and 0 to 1 diameter downstream
  • Totalizer pulse and linear 4-20 mA dc outputs
  • No parts to wear so little maintenance required
  • HART™ Interface
  • 3-way manifold for isolating the transmitter
  • Modbus, Profibus, Fieldbus available
  • Offering local and remote mounted displays gives maximum flexibility

Specifications

Approvals & Certifications

  • AWWA

Enclosure, Body Material

  • 304 Stainless Steel
  • Carbon Steel

Environmental Protection

  • IP66
  • IP67
  • NEMA 4X

Flange Size - 10” (DN 250)

  • 10” (DN 250) - 150# ANSI
  • 10” (DN 250) - 300# ANSI

Flange Size - 12” (DN 300)

  • 12” (DN 300) - 150# ANSI
  • 12” (DN 300) - 300# ANSI

Flange Size - 14” (DN 350)

  • 14” (DN 350) - 150# ANSI
  • 14” (DN 350) - 300# ANSI

Flange Size - 16” (DN 400)

  • 16” (DN 400) - 150# ANSI
  • 16” (DN 400) - 300# ANSI

Flange Size - 18” (DN 450)

  • 18” (DN 450) - 150# ANSI
  • 18” (DN 450) - 300# ANSI

Flange Size - 2” (DN 50)

  • 2” (DN 50) - 150# ANSI
  • 2” (DN 50) - 300# ANSI

Flange Size - 20” (DN 500)

  • 20” (DN 500) - 150# ANSI
  • 20” (DN 500) - 300# ANSI

Flange Size - 24” (DN 600)

  • 24” (DN 600) - 150# ANSI
  • 24” (DN 600) - 300# ANSI

Flange Size - 4” (DN 100)

  • 4” (DN 100) - 150# ANSI
  • 4” (DN 100) - 300# ANSI

Flange Size - 6” (DN 150)

  • 6” (DN 150) - 150# ANSI
  • 6” (DN 150) - 300# ANSI

Flange Size - 8” (DN 200)

  • 8” (DN 200) - 150# ANSI
  • 8” (DN 200) - 300# ANSI

Output

  • 4-20 mA

Pressure Range

  • bar: 0 to 20.68
  • kPa: 0 to 2,068
  • psi: 0 to 300
