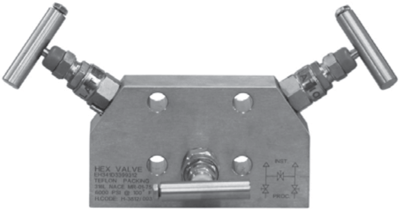

EH34 Differential Pressure Manifold Valve

Brand: Hex Valve
Does not ship to VA, United States
The EH34 is a three valve instrument manifold used to perform the block and equalizing requirement of differential pressure transmitter applications.

Of importance in this design, is the inclusion of a single mounting flange in its compact barstock construction.

A mounting kit may also be specified to allow for installation to a pipe stand.
The EH34 is a three valve instrument manifold used to perform the block and equalizing requirement of differential pressure transmitter applications.

Of importance in this design, is the inclusion of a single mounting flange in its compact barstock construction.

A mounting kit may also be specified to allow for installation to a pipe stand.

Specifications

Enclosure, Body Material

  • 316 Stainless Steel - NACE
  • Hastelloy C
  • Monel

NACE & NIST

  • NACE

NPT Inlet

  • 1/2” NPT Female

Packing Material

  • Graphite
  • Teflon

Seat / Seal Material

  • Gland Seal: PTFE

Valves

  • Three
