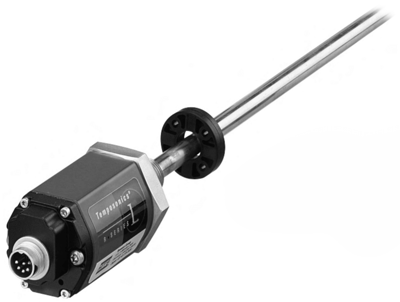

L-Series LH Start/Stop Magnetostrictive Linear Position Sensor
Does not ship to OH, United States
Description
Temposonics-LH with pressure-resistant stainless steel flange and sensing rod is suitable for use in hydraulic cylinders and externally in all applications where space is a problem.
Position measurement is via ring or U-magnets travelling along the sensing rod without any mechanical contact. Advantage the completely operable sensor cartridge can be replaced for servicing easily without opening the fluid circuit.
Specifications
Specifications
Approvals & Certifications
- ISO 9001
- CE
- EMC Test: Electromagnetic Emission EN 50081-1, Electromagnetic Immunity EN 50082-2, EN 61000, Criteria A, CE-Qualified
Communication
- Start-Stop Pulse: RS-422 Differential Signal
Consumption
- Current Consumption: 100 mA Typical
Electrical Connectors
- 2 metres PVC Cable without Connector
- 2 metres Teflon Cable without Connector
Environmental Protection
- Sealing: IP67 if Mating Connetor is Correctly Fitted
Humidity
- Dew Point: 90 % Relative Humidity, Non-Condensing
Linearity
- < ± 0.02 % of Full Scale (Min. ± 50 µm)
Materials of Construction
- Rod with Flange: AISI 304 Stainless Steel 1.4301
- Sensor Head: Aluminum
Measuring Range
- 2 to 118” (50 to 3,000 mm)
Metric Connection
- Threaded Flange M18 x 1.5
Mounting
- Mounting Plate & Screws: Amagnetic
Mounting Position
- Any Orientation
Operating Pressure
- psi: 5,076 (kPa: 35,000, bar: 350)
- psi: 7,687 (kPa: 53,000, bar: 530) Peak
Operating Temperature
- -40° to 100° C (-40° to 212° F)
Principle of Operation
- Magnetostrictive Principle
Repeatability
- < ± 0.001 % of Full Scale
Resolution
- 0.005 mm (Controller Dependent)
- 0.01 mm
- 0.1 mm
Shock
- 100 G Single Hit, IEC 68-2-27
UNF/UNC Connection
- 3/4”-16 UNF Male-3A
Vibration
- 10 G (10 to 2,000 Hz), IEC 68-2-6
Voltage
- Electric Strength: 500 Vdc (DC Ground to Machine Ground)
- Input Voltage: 24 Vdc (-15/20 %)
