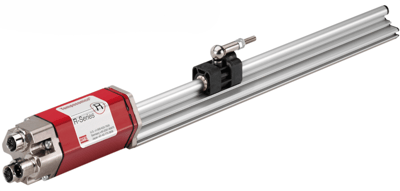

G-Series GP/GH Position Sensor

Brand: Temposonics an Amphenol Company
Does not ship to OH, United States
Features
  • Rugged industrial sensor
  • Linear absolute measurement
  • Contactless sensing with highest durability
  • Enhanced diagnostics and programming capability
  • Direct Analog output
  • Digital start/stop pulse output
show more
Features
  • Rugged industrial sensor
  • Linear absolute measurement
  • Contactless sensing with highest durability
  • Enhanced diagnostics and programming capability
  • Direct Analog output
  • Digital start/stop pulse output
Close

Specifications

Brand

Approvals & Certifications

  • ISO 9001
  • CE
  • EMC Electromagnetic Emission EN 61000-6-4 (For use in Industrial Environment), Immunity EN 61000-6-2
  • IEC 60068-2-27, 60068-2-6
  • UL (C,US) 61010-1

Cable Material

  • PUR
  • PVC

Communication

  • Start/Stop Pulse: RS-422 Serial Differential Signal

Current

  • Current Drain: 100 mA Typical

Display

  • LED Diagnostic Display Beside Connector

Electrical Connectors

  • 6-Pin Male Receptacle M16
  • Cable

Electrical Protection

  • Overvoltage Protection: up to 36 Vdc
  • Polarity Protection: up to -30 Vdc

Enclosure, Body Material

  • Connector Housing: Nickel-Plated Zinc

Environmental Protection

  • Ingress Protection (Profile): IP65
  • Ingress Protection (Rod): IP67
  • Ingress Protection: IP68 for Cable Outlet

Humidity

  • 90 % Relative Humidity, Non-Condensing

Hysteresis

  • < 4 µm

Length

  • Stroke Length: 1.9 to 299.2” (50 to 7,600 mm) - Start/Stop Rod Model
  • Stroke Length: 1.9 to 98.4” (50 to 2,500 mm) - Analog Profile/Rod Models
  • Stroke Length: 50 to 5,000 mm - Start/Stop Profile Model

Linearity

  • < ± 0.02 % of Full Scale (Min. ± 50 µm)

Load

  • Minimum Load Controller: > 5 kiloohms for Voltage Output
  • Minimum/Max.imum

Materials of Construction

  • Rod with Flange: AISI 304 Stainless Steel 1.4301
  • Sensor Stroke (Profile Model), Sensor Head: Aluminum

Metric Connection

  • M18 x 1.5

Mounting

  • Horizontal Mounting
  • Position Magnet: Mounting Plate & Screws from Antimagnetic Material
  • Profile: M5 Screws in Base Channel
  • Profile: Movable Mounting Clamp or T-Slot in Base Channel
  • Rod: Hex Nut M18

Mounting Position

  • Any Orientation

Operating Temperature

  • -40° to 80° C (-40° to 176° F)

Output

  • 0-20 mA
  • -10-10 Vdc
  • 20-4 mA
  • 4-20 mA

Pressure Rating

  • psi: 10,150 (kPa: 70,000, bar: 700) Peak
  • psi: 5,076 (kPa: 35,000, bar: 350)

Repeatability

  • < ± 0.001 % of Full Scale (Min. ± 2.5 µm)

Resolution

  • Analog: Infinite
  • Digital (Start/Stop): 0.005 mm (Controller Dependent)
  • Digital (Start/Stop): 0.01 mm
  • Digital (Start/Stop): 0.1 mm

Shock

  • 100 G Single Hit, IEC 60068-2-27

Supply Voltage

  • 24 Vdc (-15 / 20 %)

UNF/UNC Connection

  • 3/4”-16 UNF Male-3A

Update Time

  • Analog: < 1 millisecond Typical

Vibration

  • 15 G (10 to 2,000 Hz) IEC 60068-2-6 (Resonance Frequencies Excluded)

Voltage

  • Electric Strength: 500 Vdc (DC Ground to Machine Ground)
