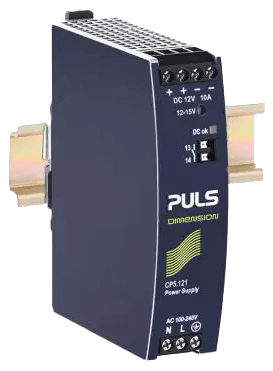

CP5.121 DIN Rail Power Supplies

Brand: PULS GmbH
Does not ship to OH, United States
The Dimension CP-Series are cost optimized power supplies without compromising quality, reliability and performance.

The CP-Series is part of the DIMENSION power supply family.

The most outstanding features of this unit is the small size, the high efficiency, the electronic inrush current limitation, active PFC and the wide operational temperature range.

The device has a power reserve of 20% included, which may even be used continuously at temperatures up to +45°C.

Additionally, it can deliver 3 times the nominal output current for 12ms which helps to trip fuses on faulty output branches.

High immunity to transients and power surges as well as low electromagnetic emission, a DC-OK signal contact for remote monitoring, and a large international approval package for a variety of applications makes this unit suitable for nearly every situation.
Features
  • AC 100-240V Wide-range Input
  • Width only 32mm
  • Efficiency up to 94.0%
  • Excellent Partial Load Efficiency
  • 20% Output Power Reserves
  • Easy Fuse Breaking – 3 times nominal current for 12ms
  • Safe HiccupPLUS Overload Mode
  • Active Power Factor Correction (PFC)
  • Minimal Inrush Current Surge
  • Full Power Between -25°C and +60°C
  •  DC-OK Relay Contact
  • 3 Year Warranty
The Dimension CP-Series are cost optimized power supplies without compromising quality, reliability and performance.

The CP-Series is part of the DIMENSION power supply family.

The most outstanding features of this unit is the small size, the high efficiency, the electronic inrush current limitation, active PFC and the wide operational temperature range.

The device has a power reserve of 20% included, which may even be used continuously at temperatures up to +45°C.

Additionally, it can deliver 3 times the nominal output current for 12ms which helps to trip fuses on faulty output branches.

High immunity to transients and power surges as well as low electromagnetic emission, a DC-OK signal contact for remote monitoring, and a large international approval package for a variety of applications makes this unit suitable for nearly every situation.
Features
  • AC 100-240V Wide-range Input
  • Width only 32mm
  • Efficiency up to 94.0%
  • Excellent Partial Load Efficiency
  • 20% Output Power Reserves
  • Easy Fuse Breaking – 3 times nominal current for 12ms
  • Safe HiccupPLUS Overload Mode
  • Active Power Factor Correction (PFC)
  • Minimal Inrush Current Surge
  • Full Power Between -25°C and +60°C
  •  DC-OK Relay Contact
  • 3 Year Warranty
Close

Specifications

Brand

AC Input Voltage

  • AC 100-240 V (-15 %/+10 %)

DC Input Voltage

  • DC 110 V - 150 V (± 20 %)

Harmonic Correction

  • active

Power Factor

  • 0.91

Input Inrush Current Limitation

  • active

Input Inrush Current

  • 4A / 4A

External Input Fuse Recommendation

  • B-6A / C-6A

Nominal Voltage

  • 12 Vdc

Adjustment Range

  • 12 - 15 V

Output Current Range

  • 10 - 8A

Output Current

  • 8A at 15 V
  • 10 A at 12 V

Output Power

  • 120 W

Power Reserves

  • 20 % Power Boost

Derating

  • 3W/°C for > 60° C

Ripple and Noise Voltage Maximum

  • 50 mVpp

Dimensions (WxHxD)

  • 32 mm x 124 mm x 102 mm

Weight per Unit (Excluding Packaging)

  • 440 g

Mounting Method

  • DIN Rail

Operating Temperature Range

  • -25° C to 70° C

Connection Method

  • Screw terminals

Efficiency, typ.

  • 94%

Power Losses, typ.

  • 7.7W

MTBF SN 29500 at 40° C (h)

  • 732000h

DC-OK Signal

  • yes
