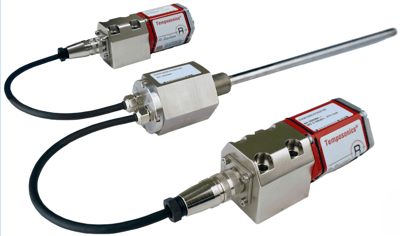

RT4 SSI Magnetostrictive Linear Position Sensor

Brand: Temposonics an Amphenol Company
Does not ship to VA, United States
RT4 Sensor:  Robust, non-contact and wear-free, the Temposonics linear position sensors provide best durability and accurate position measurement solutions in harsh industrial environments.

Designed for demanding applications that require redundancy and detached electronics due to high temperature or high reliability requirements.

The position measurement accuracy is tightly controlled by the quality of the waveguide which is manufactured by MTS Sensors.

The position magnet is mounted on the moving machine part and travels contact-lessly over the sensor rod with the built-in waveguide.
Features
  • Detached electronics up to 600 mm from sensor rod
  • Linear, absolute measurement
  • Non-contact sensing technology
  • Linearity deviation less than 0.02%
  • Direct 24/25/26-bit SSI output, gray/binary formats
  • LEDs for sensor status and diagnostics
show more
RT4 Sensor:  Robust, non-contact and wear-free, the Temposonics linear position sensors provide best durability and accurate position measurement solutions in harsh industrial environments.

Designed for demanding applications that require redundancy and detached electronics due to high temperature or high reliability requirements.

The position measurement accuracy is tightly controlled by the quality of the waveguide which is manufactured by MTS Sensors.

The position magnet is mounted on the moving machine part and travels contact-lessly over the sensor rod with the built-in waveguide.
Features
  • Detached electronics up to 600 mm from sensor rod
  • Linear, absolute measurement
  • Non-contact sensing technology
  • Linearity deviation less than 0.02%
  • Direct 24/25/26-bit SSI output, gray/binary formats
  • LEDs for sensor status and diagnostics

Specifications

Approvals & Certifications

  • ISO 9001
  • EMC Test: Electromagnetic Emission: IEC/EN 50081-1, Electromagnetic Susceptibility: IEC/EN 50082-2, IEC/EN 61000-4-2, 3, 4, 6, Level 3/4 Criterium A

Communication

  • Data Transmission Rate: 70 KBaud to 1 MBaud
  • Interface: SSI (Synchronous Serial Interface) - Differential Signal in SSI Standard (RS-422)

Consumption

  • Current Consumption: 100 mA Per Sensor Electronics

Display

  • Diagnostic: LEDs Display (LEDs Located Beside Connector / Cable Exit)

Electrical Connectors

  • 7-Pin M16 Connector
  • Integral Cable, Black Polyurethane Jacket
  • Pigtail Connector
  • PVC Jacketed

Electrical Protection

  • Overvoltage Protection: up to 36 Vdc
  • Polarity Protection: up to -30 Vdc

Enclosure, Body Material

  • Sensor Electronics: Aluminum
  • Sensor Housing: AISI 304L Stainless Steel

Environmental Protection

  • Ingress Protection Sensor Electronics: IP67 (with Professionally Mounted Housing & Connectors)
  • Ingress Protection Sensor Housing with Interconnection Cable: IP68

Humidity

  • 90 % Relative Humidity, Non-Condensing

Length

  • Stroke Length: 1 to 100” (25 to 2,540 mm)

Linearity

  • < ± 0.02 % of Full Scale (Min. ± 50 µm)

Mounting Position

  • Any Orientation

Operating Pressure

  • psi: 10,000 (kPa: 69,000, bar: 690) Peak
  • psi: 5,000 (kPa: 35,000, bar: 350) Static

Operating Temperature

  • Sensor Electronics: -40° to 75° C (-40° to 167° F)
  • Sensor Rod with Interconnection Cable: -40° to 100° C (-40° to 212° F)

Operating Voltages

  • 24 Vdc (-15 / 20 %)

Repeatability

  • < ± 0.001 % of Full Scale (Min. ± 2.5 µm)

Resolution

  • 1 µm
  • 10 µm
  • 100 µm
  • 2 µm
  • 20 µm
  • 5 µm
  • 50 µm

Shock

  • 100 G (Single Hit) / IEC 60068-2-27

Vibration

  • 10 G (10 to 2,000 Hz), IEC 60068-2-6

Voltage

  • Dielectric Strength: 500 Vdc (DC Ground to Machine Rround)

Applications

  • Fluid Power
  • Power Generation Equipment
  • Wood
  • Steel
