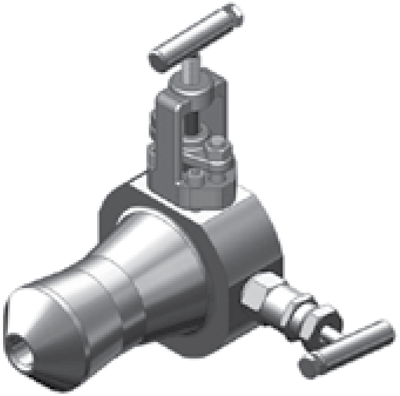

MonoWeld Valve

Brand: Hex Valve
Does not ship to OH, United States
The Hex monoweld is used on upstream offshore/onshore gas and oil production and initial processing installations.

Typically used on single or dual gauge pressure or analyzer installations to minimize the size and weight of the pipe-valve assemblies used for primary and/or secondary isolation, vent and calibration.

Also used in downstream oil and gas refining and petrochemical production on welded, or flanged pipe processes, primary on gas applications or light end liquids.
Features
  • Non-rotating tip (NRT) conical plug stem forms consistent lapped mate with the seat ensuring bubble tight shutoff and prolonged stem and seat life
  • Robust stem and bonnet construction. Can withstand the rugged environment of offshore platforms better than any other design on the market
  • 4 rings Teflon-Chevron style packing, or multi-ring set of grafoil surrounded by braided graphite standard
  • Solid bonnet stop pin standard. Hollow spring steel pin can corrode and crack in salt water, or corrosive ambient environments
  • Combination anti-tamper with lock-out vent bonnet option
The Hex monoweld is used on upstream offshore/onshore gas and oil production and initial processing installations.

Typically used on single or dual gauge pressure or analyzer installations to minimize the size and weight of the pipe-valve assemblies used for primary and/or secondary isolation, vent and calibration.

Also used in downstream oil and gas refining and petrochemical production on welded, or flanged pipe processes, primary on gas applications or light end liquids.
Features
  • Non-rotating tip (NRT) conical plug stem forms consistent lapped mate with the seat ensuring bubble tight shutoff and prolonged stem and seat life
  • Robust stem and bonnet construction. Can withstand the rugged environment of offshore platforms better than any other design on the market
  • 4 rings Teflon-Chevron style packing, or multi-ring set of grafoil surrounded by braided graphite standard
  • Solid bonnet stop pin standard. Hollow spring steel pin can corrode and crack in salt water, or corrosive ambient environments
  • Combination anti-tamper with lock-out vent bonnet option
Close

Specifications

Brand

Enclosure, Body Material

  • 316 Stainless Steel - A479
  • A105 Carbon Steel
  • A182 316L Stainless Steel
  • Alloy 20 or Incoloy
  • Duplex A182 F51 Stainless Steel
  • Hastelloy C
  • Incoloy 825
  • Inconel 625
  • Low Temperature Carbon Steel A350 LF2
  • Monel
  • Super Duplex A182 F55 Stainless Steel

NPT Outlet

  • 1” NPT Female
  • 1” NPT Male
  • 1/2” NPT Female
  • 1/2” NPT Male
  • 1/4” NPT Female
  • 1/4” NPT Male
  • 3/4” NPT Female
  • 3/4” NPT Male
  • 3/8” NPT Female
  • 3/8” NPT Male

Packing Material

  • Graphite
  • Teflon

Pipe Schedule

  • Schedule 10 to 160

Pipe Size

  • 1-1/2” to 12” (38.1 to 304.8 mm)

Pressure Rating

  • psig: 10,000 (kPa: 68,950, bar: 689.5) (Screwed Bonnet TFE Only, Material Dependent)

Stem Material

  • 316 Stainless Steel
  • 316L Stainless Steel
  • Alloy 20 or Incoloy
  • Hastelloy C
  • Incoloy 825
  • Inconel 625

Welded Outlet

  • 1” Socket Weld End
  • 1/2” Socket Weld End
  • 1/4” Socket Weld End
  • 3/4” Socket Weld End
  • 3/8” Socket Weld End
