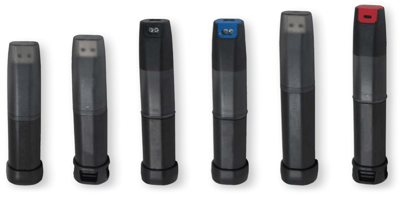

Series DW-USB Compact USB Data Logger

Brand: Dwyer Instruments, LLC
Request Information
Does not ship to VA, United States
The Series DW-USB Compact USB Data Logger allows users to monitor temperature, humidity, dew point, voltage, current, or carbon monoxide almost anywhere, and then download stored data by simply plugging the module directly into a PC's USB port.

The compact housing can resist moisture up to IP67 when the protective cap is attached, and has built in LED's to indicate an alarm has been met or the battery is low.

Users can set the sampling rate, start time, high/low alarms, and temperature unit via software available for free download from our website.
Features
  • Meets IP67 standards when the protective cap is fitted
  • All in one unit plugs into PC with no cable required
  • LED status indicators for visual confirmation
  • Optional integral LCD display for local indication
The Series DW-USB Compact USB Data Logger allows users to monitor temperature, humidity, dew point, voltage, current, or carbon monoxide almost anywhere, and then download stored data by simply plugging the module directly into a PC's USB port.

The compact housing can resist moisture up to IP67 when the protective cap is attached, and has built in LED's to indicate an alarm has been met or the battery is low.

Users can set the sampling rate, start time, high/low alarms, and temperature unit via software available for free download from our website.
Features
  • Meets IP67 standards when the protective cap is fitted
  • All in one unit plugs into PC with no cable required
  • LED status indicators for visual confirmation
  • Optional integral LCD display for local indication
Close
Close

Specifications

Brand

Accuracy

  • ± 1 %
  • ± 4 % of Reading
  • ± 6 % of Reading
  • 1.5° C (3° F)
  • 1° C (2° F)
  • 2° C (± 4° F)

Alarm

  • Programmable High/Low

Approvals & Certifications

  • CE

Enclosure, Body Material

  • ABS Plastic Blend

Function

  • Stops on Memory Full - Sampling Mode

Humidity

  • 0 to 100 % RH

Indication

  • Green LED
  • Red LED

Interface Connection

  • USB Port

Length

  • 3" to 5"

Operating Temperature - Sensor

  • -200° to 1300° C (-328° to 2372° F)

Power Requirement

  • 3.6 V 1/2 AA Lithium Metal Battery

Resolution

  • 0.05 mA
  • 0.5 ppm
  • 0.5° C (1° F) - 0.5 % RH
  • 50 mVdc

System Requirements

  • Windows 2000/XP/7/8 Operating System
Close

Applications

  • Calibration labs
  • Environmental chambers
  • Pharmaceutical plants
  • Storage warehouses
