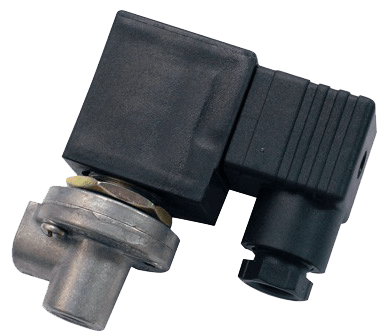

Series RSV Pilot Solenoid Valve

Brand: Dwyer Instruments, LLC
Does not ship to OH, United States
The Series RSV Pilot Solenoid Valve is used to operate the Series RDCV remote type diaphragm valve.

The RSV can drive all size diaphragm valves. Consult factory for mounting of RSV valves with our DCT timer boards together in one enclosure all pre-wired.
Features
  • Filtered and oil-free
  • Weatherproof enclosure package available
  • Can be mounted with DCT timer boards in one enclosure, consult factory
The Series RSV Pilot Solenoid Valve is used to operate the Series RDCV remote type diaphragm valve.

The RSV can drive all size diaphragm valves. Consult factory for mounting of RSV valves with our DCT timer boards together in one enclosure all pre-wired.
Features
  • Filtered and oil-free
  • Weatherproof enclosure package available
  • Can be mounted with DCT timer boards in one enclosure, consult factory
Close
Close

Specifications

Brand

Ambient Temperature Range

  • -20° to 50° C (-4° to 122° F)

Approvals & Certifications

  • CE

Consumption

  • 12 W
  • 14.5 VA - Holding
  • 17 VA - Inrush

Electrical Connectors

  • 18 AWG, 22” (55 cm) Long
  • DIN Connection
  • Wire Leads

Enclosure, Body Material

  • Aluminum

Environmental Protection

  • IP66
  • NEMA 4X

Flow Capacity

  • 0.33 Cv

Length

  • 9.8” (3 m) - Max.

Media

  • Compatible Gases
  • Filtered, Oil Free

Mounting Position

  • Any Orientation

NPT Connection

  • 1/8” NPT Female

Operating Temperature

  • -20° to 85° C (-4° to 185° F)

Power Requirement

  • 110 Vac
  • 220 Vac
  • 24 Vdc

Pressure Range

  • psi: 4.4 to 124.7 (kPa: 30 to 860, bar: 0.3 to 8.6)

Seat / Seal Material

  • NBR - Wetted Materials

Spring Material

  • 304 Stainless Steel - Wetted Materials

Wetted Materials

  • 304 Stainless Steel - Core
Close

Applications

  • For use with RDCV Remote Valve
