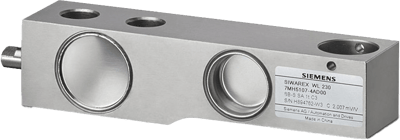

SIWAREX WL230 SB-S SA Shear Beam Load Cell

Brand: Siemens AG
Does not ship to VA, United States
SIWAREX WL230 SB-S SA is an extremely compact shear beam load cell designed for crowded conditions.

Mounted with the compatible SIWAREX mounting unit the installation height up to 2 t is only 76 mm (3") and for 5 t only 111 mm (4.4").

With a resolution of 15,000, the SIWAREX WL230 SB-S SA is ideal for use in large-sized platform scales, batching systems, sacking systems or bin scales.
Features
  • Extremely compact design
  • Easy and quick installation with SIWAREX mounting units
SIWAREX WL230 SB-S SA is an extremely compact shear beam load cell designed for crowded conditions.

Mounted with the compatible SIWAREX mounting unit the installation height up to 2 t is only 76 mm (3") and for 5 t only 111 mm (4.4").

With a resolution of 15,000, the SIWAREX WL230 SB-S SA is ideal for use in large-sized platform scales, batching systems, sacking systems or bin scales.
Features
  • Extremely compact design
  • Easy and quick installation with SIWAREX mounting units

Specifications

Rated Load

  • 500, 1,000, 2,000, 5,000 kg

Accuracy Class

  • C3 According to OIML R60

Resolution

  • 10,000 to 15,000

Environmental Protection

  • IP68

Sensor Material (DIN)

  • Stainless Steel

Operating Temperature

  • -35° to 65° C (-31° to 149° F)

Storage Temperature

  • -35° to 65° C (-31° to 149° F)

Rated Temperature Tange

  • -10° to 40° C (14° to 104° F)

Applications

  • Hopper Scales
  • Belt Scales
  • Overhead Rail Scales
  • Platform Scales
