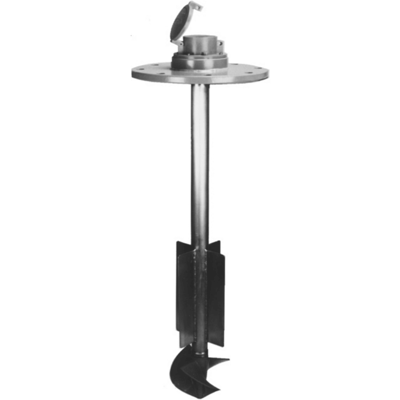

Model VF32-D Vertical Downflow Meter

Brand: McCrometer, Inc
Does not ship to VA, United States
McCrometer Model VF32-D Vertical Downflow Meters are designed for mounting in tees with up to 150 psi working pressure.

The bolt-on design permits use in a wide range of applications with up to 150 psi working pressure.

The mounting flange conforms to ANSI class 125 drilling.

It is necessary, upon ordering, to furnish the I.D. dimension of the pipe the meter is to be mounted on for calibration purposes.
McCrometer Model VF32-D Vertical Downflow Meters are designed for mounting in tees with up to 150 psi working pressure.

The bolt-on design permits use in a wide range of applications with up to 150 psi working pressure.

The mounting flange conforms to ANSI class 125 drilling.

It is necessary, upon ordering, to furnish the I.D. dimension of the pipe the meter is to be mounted on for calibration purposes.
Close

Specifications

Brand

Approvals & Certifications

  • NSF

Bearing Material

  • Propeller Bearing: Ceramic

Enclosure, Body Material

  • Drop Pipe: Stainless Steel
  • Meter Head: Cast Iron
  • Meter Head: Steel

Environmental Protection

  • IP66
  • NEMA 4X

Materials of Construction

  • Maget: Ceramic
  • Propeller Spindle, Separator, Bolt: Stainless Steel
  • Propeller: Thermoplastic

Maximum System Pressure

  • psi: 150 (kPa: 1,000, bar: 10)

Shaft Material

  • Stainless Steel

Size

  • Meter & Pipe Size: 4” to 20”

Temperature Range

  • Maximum 140° F
