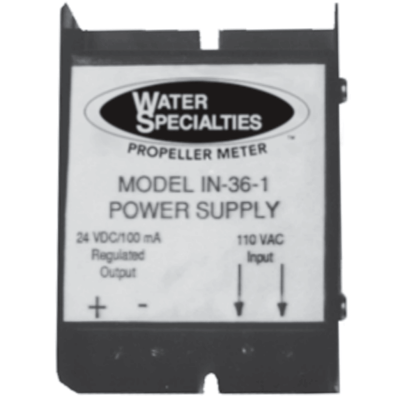

Model IN36-1 Power Supply

Brand: McCrometer, Inc
Does not ship to VA, United States
McCrometer Model IN36-1 Power Supply accepts an input of 115 Vac and converts it into a regulated output of 24 Vdc at 100 mA. The output is regulated and filtered to reduce static noise.
McCrometer Model IN36-1 Power Supply accepts an input of 115 Vac and converts it into a regulated output of 24 Vdc at 100 mA. The output is regulated and filtered to reduce static noise.

Specifications

Environmental Protection

  • IP66
  • NEMA 4X

Output

  • Output Signal: 24 Vdc ± 1 %

Output Load

  • 24 V / 100 mA

Power Supply

  • 115 Vac ± 5 %, 60 Hz, 1-Phase

Temperature Range

  • 0° to 60° C (32° to 140° F)
