G-Series Model GTE Embedded Redundant Position Sensor

Brand: Temposonics an Amphenol Company
Does not ship to VA, United States
G-Series model GTE sensors are extremely robust and are ideal for continuous operation under harsh industrial conditions.

The rod housing is capable of withstanding high pressures such as those found in hydraulic cylinders. G-Series redundant sensors provide accurate, linear-position measurement for applications that benefit from redundancy due to safety relevant functions.

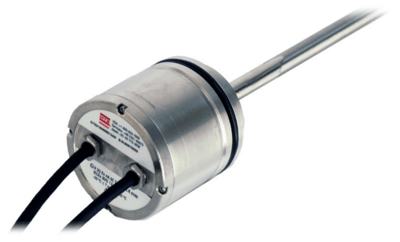

G-Series Embedded Redundant sensors feature two independent measuring systems contained in one compact housing. Each measuring system contains its own channel with sensor element, power and evaluation electronics and output signal.

Each channel has it's own output cable. All sensor elements are integrated in one pressure proofed, high-grade, 10 mm (0.39") diameter stainless steel rod.

The redundant sensor easily installs in applications measuring linear movements of control valves, linear drives, fluid cylinders and machines.
Features
  • Linear, absolute measurement
  • Contains two independent measuring systems in a single compact housing
  • Non-contact sensing technology
  • Available with IECEx certification for hazardous areas
show more
G-Series model GTE sensors are extremely robust and are ideal for continuous operation under harsh industrial conditions.

The rod housing is capable of withstanding high pressures such as those found in hydraulic cylinders. G-Series redundant sensors provide accurate, linear-position measurement for applications that benefit from redundancy due to safety relevant functions.

G-Series Embedded Redundant sensors feature two independent measuring systems contained in one compact housing. Each measuring system contains its own channel with sensor element, power and evaluation electronics and output signal.

Each channel has it's own output cable. All sensor elements are integrated in one pressure proofed, high-grade, 10 mm (0.39") diameter stainless steel rod.

The redundant sensor easily installs in applications measuring linear movements of control valves, linear drives, fluid cylinders and machines.
Features
  • Linear, absolute measurement
  • Contains two independent measuring systems in a single compact housing
  • Non-contact sensing technology
  • Available with IECEx certification for hazardous areas

Specifications

Approvals & Certifications

  • ISO 9001
  • ATEX Ex: II 3 G Ex NA IIC T4 Gc
  • CE
  • EMC Electromagnetic Emission EN 61326-1, Immunity EN 61326-1
  • IEC Ex BVS 13.00C3X, Ex NA IIC T4 Gc

Communication

  • RS-485

Current

  • Current Drain: 100 mA Typical Per Channel

Display

  • Remote Display

Electrical Connectors

  • Integrated Cable

Electrical Protection

  • Overvoltage Protection: up to 36 Vdc
  • Polarity Protection: up to -30 Vdc

Environmental Protection

  • Sealing: IP54

Humidity

  • 90 % Relative Humidity, Non-Condensing

Hysteresis

  • < 4 µm

Input

  • 24 Vdc (20 % / 15 %) (Tamb, Max.

Length

  • Stroke Length: 2 to 100” (50.8 to 2,540 mm)

Linearity

  • Deviation: < ± 0.02 % of Full Scale (Min. ± 50 µm)

Load

  • 0 to 500 ohms for Current Output
  • Controller: > 5 kiloohms Min. for Voltage Output

Materials of Construction

  • Electronic Head: 303 Stainless Steel

Operating Pressure

  • psi: 10,000 (kPa: 69,000, bar: 690) Peak
  • psi: 5,000 (kPa: 35,000, bar: 350) Static

Operating Temperature

  • -20° to 75° C (-4° to 167° F)

Operating Voltages

  • 24 Vdc Nominal, (-15 % / 20 %)

Output

  • 0-10 Vdc
  • 0-20 mA
  • -10-10 Vdc
  • 10 to -10 Vdc
  • 10-0 Vdc
  • 20-0 mA
  • 20-4 mA
  • 4-20 mA

Principle of Operation

  • Magnetostrictive Principle

Repeatability

  • < ± 0.001 % of Full Scale (Min. ± 2.5 µm)

Resolution

  • Analog: Infinite (Restricted by Output Ripple)

Sensor, Probe Material

  • Sensor Rod: 304L Stainless Steel

Shock

  • 100 G (Single Hit) / IEC 60068-2-27 (Survivability)

Update Time

  • < 1 millisecond Typical

Vibration

  • 10 G (10 to 2,000 Hz), IEC 60068-2-6 (Operational)

Voltage

  • Dielectric Withstand Voltage: 500 Vdc (DC Ground to Machine Ground)

Applications

  • Continuous Operation in Harsh Industrial Conditions
  • Floodgate Control
  • High Pressure Applications
  • High-Safety Applications Requiring Redundancy
  • Marine Propellers
  • Power Plants
  • Ship Control Systems
  • Water & Wind Turbine Pitch Settings
