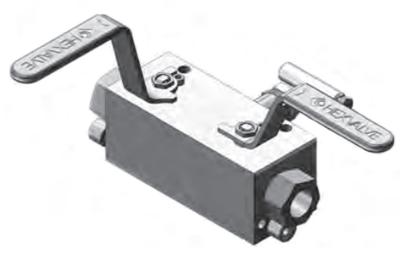

Hexblok Ball Valve

Brand: Hex Valve
Does not ship to OH, United States
HEXBLOKS are used primarily on Upstream Offshore/Onshore Oil production and initial processing installations.

Typically used on liquid hydrocarbon applications to minimize the size and weight of the pipe-valve assemblies associated with gauge pressure or analytical instrumentation.

Used specifically for primary and/or secondary isolation, vent and calibration access, or sampling or injection applications.

Also used in downstream Oil Refining and Petrochemical production on flanged process piping.
HEXBLOKS are used primarily on Upstream Offshore/Onshore Oil production and initial processing installations.

Typically used on liquid hydrocarbon applications to minimize the size and weight of the pipe-valve assemblies associated with gauge pressure or analytical instrumentation.

Used specifically for primary and/or secondary isolation, vent and calibration access, or sampling or injection applications.

Also used in downstream Oil Refining and Petrochemical production on flanged process piping.

Specifications

Enclosure, Body Material

  • 316 Stainless Steel
  • 316L Stainless Steel - A182F, Forged
  • A105 Carbon Steel
  • Alloy 20 or Incoloy
  • Duplex A182 F51 Stainless Steel (Forged)
  • Hastelloy C
  • Incoloy 825
  • Inconel 625
  • Low Temperature Carbon Steel A350 LF2 (Forged)
  • Monel 400 (Forged)
  • Super Duplex A182 F55 Stainless Steel (Forged)

Flange Size - 1-1/2” (DN 40)

  • 1-1/2” (DN 40) - 150#
  • 1-1/2” (DN 40) - 1500#
  • 1-1/2” (DN 40) - 2500#
  • 1-1/2” (DN 40) - 300#
  • 1-1/2” (DN 40) - 600#
  • 1-1/2” (DN 40) - 900#

Flange Size - 1” (DN 25)

  • 1” (DN 25) - 150#
  • 1” (DN 25) - 1500#
  • 1” (DN 25) - 2500#
  • 1” (DN 25) - 300#
  • 1” (DN 25) - 600#
  • 1” (DN 25) - 900#

Flange Size - 1/2” (DN 15)

  • 1/2” (DN 15) - 150#
  • 1/2” (DN 15) - 1500#
  • 1/2” (DN 15) - 2500#
  • 1/2” (DN 15) - 300#
  • 1/2” (DN 15) - 600#
  • 1/2” (DN 15) - 900#

Flange Size - 1/4” (DN 6)

  • 1/4” (DN 6) - 150#
  • 1/4” (DN 6) - 1500#
  • 1/4” (DN 6) - 2500#
  • 1/4” (DN 6) - 300#
  • 1/4” (DN 6) - 600#
  • 1/4” (DN 6) - 900#

Flange Size - 2” (DN 50)

  • 2” (DN 50) - 150#
  • 2” (DN 50) - 1500#
  • 2” (DN 50) - 2500#
  • 2” (DN 50) - 300#
  • 2” (DN 50) - 600#
  • 2” (DN 50) - 900#

Flange Size - 3/4” (DN 20)

  • 3/4” (DN 20) - 150#
  • 3/4” (DN 20) - 1500#
  • 3/4” (DN 20) - 2500#
  • 3/4” (DN 20) - 300#
  • 3/4” (DN 20) - 600#
  • 3/4” (DN 20) - 900#

Flange Size - 3/8” (DN 10)

  • 3/8” (DN 10) - 150#
  • 3/8” (DN 10) - 1500#
  • 3/8” (DN 10) - 2500#
  • 3/8” (DN 10) - 300#
  • 3/8” (DN 10) - 600#
  • 3/8” (DN 10) - 900#

Flange Type

  • Raised Face (RF)
  • RTJ - Ring Typical Joint

NACE & NIST

  • NACE

NPT Inlet

  • 1” NPT Female
  • 1” NPT Male
  • 1/2” NPT Female
  • 1/2” NPT Male
  • 1/4” NPT Female
  • 1/4” NPT Male
  • 1-1/2” NPT Female
  • 1-1/2” NPT Male
  • 2” NPT Female
  • 2” NPT Male
  • 3/4” NPT Female
  • 3/4” NPT Male
  • 3/8” NPT Female
  • 3/8” NPT Male

NPT Outlet

  • 1” NPT Female
  • 1” NPT Male
  • 1/2” NPT Female
  • 1/2” NPT Male
  • 1/4” NPT Female
  • 1/4” NPT Male
  • 1-1/2” NPT Female
  • 1-1/2” NPT Male
  • 2” NPT Female
  • 2” NPT Male
  • 3/4” NPT Female
  • 3/4” NPT Male
  • 3/8” NPT Female
  • 3/8” NPT Male

Packing Material

  • Graphite
  • Teflon

Seat / Seal Material

  • Ball Seat: Carbon-Filled PEEK
  • Ball Seat: PEEK

Welded Inlet

  • 1” Socket Weld End Female
  • 1/2” Socket Weld End Female
  • 1/4” Socket Weld End Female
  • 1-1/2” Socket Weld End Female
  • 2” Socket Weld End Female
  • 3/4” Socket Weld End Female
  • 3/8” Socket Weld End Female

Welded Outlet

  • 1” Socket Weld End Female
  • 1/2” Socket Weld End Female
  • 1/4” Socket Weld End Female
  • 1-1/2” Socket Weld End Female
  • 2” Socket Weld End Female
  • 3/4” Socket Weld End Female
  • 3/8” Socket Weld End Female
