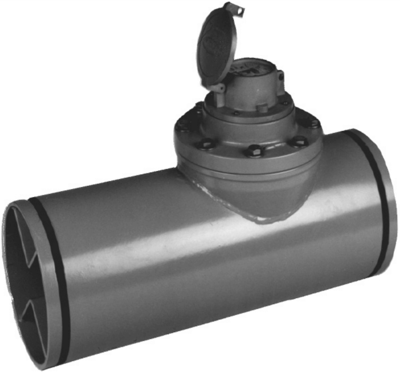

Model ML12-D-GE Grooved End Tube Meter

Brand: McCrometer, Inc
Does not ship to OH, United States
McCrometer Model ML12-D Grooved End Tube Meter are manufactured to the highest standards.

Materials used on all meters and flow ranges for the low velocity meter meet or exceed AWWA standard C704-02.

The plain end tube design permits use in a wide range of applications with up to 150 psi working pressure.

Fabricated steel meter tubes have straightening vanes and are protected internally and externally with 12 to 15 mils of fusion epoxy resin.
McCrometer Model ML12-D Grooved End Tube Meter are manufactured to the highest standards.

Materials used on all meters and flow ranges for the low velocity meter meet or exceed AWWA standard C704-02.

The plain end tube design permits use in a wide range of applications with up to 150 psi working pressure.

Fabricated steel meter tubes have straightening vanes and are protected internally and externally with 12 to 15 mils of fusion epoxy resin.
Close

Specifications

Brand

Approvals & Certifications

  • AWWA
  • FCC

Bearing Material

  • Propeller Bearing: Ceramic

Enclosure, Body Material

  • Meter Head, Meter Tube: Steel
  • Meter Head: Cast Iron

Environmental Protection

  • IP66
  • NEMA 4X

Materials of Construction

  • Maget: Ceramic
  • Propeller Spindle, Gearbox, Separator, Meter Head Bolt: Stainless Steel
  • Propeller: Thermoplastic

Pressure Rating

  • psi: 150 (kPa: 1,000, bar: 10)

Shaft Material

  • Stainless Steel

Size

  • Meter & Nominal Pipe Size: 3” to 48”
