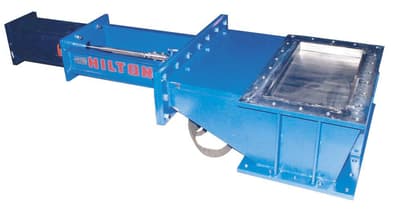

H-290 Material Handling Knife Gate Valve

Brand: Hilton
Does not ship to OH, United States
Fabricated Material Handling Knife Gate Valves are specifically designed to be used on dry bulk materials where the valve is installed horizontally in a vertical pipe.

A displacement pocket is provided which enables the valve to close through a standing column of packed material. Bonneted or bonnetless configuration.

Available with round, square, rectangular or combination port with a round port on one side and a square or rectangular port on the other side, eliminating the need for a transition piece.
Fabricated Material Handling Knife Gate Valves are specifically designed to be used on dry bulk materials where the valve is installed horizontally in a vertical pipe.

A displacement pocket is provided which enables the valve to close through a standing column of packed material. Bonneted or bonnetless configuration.

Available with round, square, rectangular or combination port with a round port on one side and a square or rectangular port on the other side, eliminating the need for a transition piece.
Close

Specifications

Brand

Abrasive Service

  • Optional Abrasion & Corrosion Resistant Designs with Hard Facing Available in Stellite, Tungsten Carbide, Pulse Fusion.

Materials

  • Valves are available in Solid, Wetted Parts or Trim Construction in Any Weldable Alloy, Including Stainless Steel, Hastelloy, Inconel, Monel & Titanium.

Seating

  • Metal or Resilient with Options for Removable Seat

Size Range

  • Through 48”

Temperature Range

  • Up to 2000° F

Valve Style

  • H-290, Bonnetless Valve, H-290-B, Bonneted Valve
