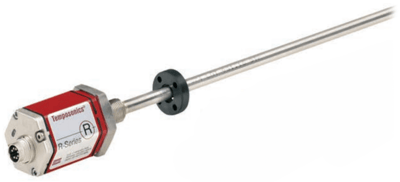

R-Series SSI Absolute, Non-Contact Position Sensor

Brand: Temposonics an Amphenol Company
Does not ship to OH, United States
SSI (Synchronous Serial Interface): The sensors fulfill all requirements of the SSI standard for absolute encoders.

Its position value is encoded in a binary format and transmitted at high speed to the control device.
Features
  • Rugged industrial sensor
  • Linear and absolute measurement
  • LEDs for sensor diagnostics
  • Non-contact sensing with highest durability
  • Direct SSI output, gray/binary
  • Synchronous measurement for real-time sensing
show more
SSI (Synchronous Serial Interface): The sensors fulfill all requirements of the SSI standard for absolute encoders.

Its position value is encoded in a binary format and transmitted at high speed to the control device.
Features
  • Rugged industrial sensor
  • Linear and absolute measurement
  • LEDs for sensor diagnostics
  • Non-contact sensing with highest durability
  • Direct SSI output, gray/binary
  • Synchronous measurement for real-time sensing
Close

Specifications

Brand

Approvals & Certifications

  • CE
  • EMC Electromagnetic (Emission EN 61000-6-4, Immunity EN 61000-6-2), EN 61000-4-2, 3, 4, 6, Level 3/4, Criterium A
  • UL 61010-1

Communication

  • Data Length: 8 to 32-bits
  • Data Speed Baud Rate: 1 MBd to 400 KBd
  • SSI (Synchronous Serial Interface) - Differential Signal in SSI Standard (RS-422)

Current

  • Current Drain: 100 mA Typical

Display

  • LED Diagnostic Display Beside Connector

Electrical Connectors

  • 2 metres PUR-Cable without Connector
  • 7-Pin Male Receptacle M16

Electrical Protection

  • Overvoltage Protection: up to 36 Vdc
  • Polarity Protection: up to -30 Vdc

Environmental Protection

  • Ingress Protection (Profile): IP65
  • Ingress Protection (Rod): IP67
  • Ingress Protection RS: IP69K
  • Ingress Protection: IP68 for Cable Outlet

Humidity

  • Dew Point, Humidity: 90 % Relative Humidity, Non-Condensing

Hysteresis

  • < 4 µm Typical 2 µm

Length

  • Stroke Length (Profile): 0.98 to 196.9” (25 to 5,000 mm)
  • Stroke Length (Rod): 0.98 to 299.2” (25 to 7,600 mm)

Linearity

  • < ± 0.01 % of Full Scale (Min. ± 40 µm)

Materials of Construction

  • Rod with Flange: AISI 304 Stainless Steel 1.4301 - Rod Model
  • Sensor Stroke (Profile), Sensor Head: Aluminum

Metric Connection

  • Threaded Flange M18 x 1.5

Mounting

  • Profile: Movable Mounting Clamp
  • U-Magnet, Removable & Position Magnet: Plate Mounting
  • U-Magnet, Removable & Position Magnet: Screw Mount from Antimagnetical Material

Mounting Position

  • Any Orientation

Operating Temperature

  • -40° to 75° C (-40° to 167° F)

Pressure Rating

  • psi: 10,150 (kPa: 70,000, bar: 700) Peak - Rod Model
  • psi: 11,600 (kPa: 80,000, bar: 800) - Rod Model
  • psi: 17,400 (kPa: 120,000, bar: 1,200) Peak Hydraulic Rod - Rod Model
  • psi: 5,076 (kPa: 35,000, bar: 350) - Rod Model

Repeatability

  • < ± 0.001 % of Full Scale (Min. ± 2.5 µm)

Resolution

  • Position: 0.5 to 10 µm

Seat / Seal Material

  • Seal: Fluoroelastomer

Shock

  • 100 G Single Hit, IEC 60068-2-27

Supply Voltage

  • 24 Vdc (-15 / 20 %)

Temperature Coefficient

  • < 15 ppm/°C

Tolerance

  • Linearity Tolerance (RP, 1,200 to 3,000 mm): Typical ± 45 µm, Max.
  • Linearity Tolerance (RP, 3 to 5 m): Typical ± 85 µm, Max.
  • Linearity Tolerance (RP/RH, 300 to 600 mm): Typical ± 20 µm, Max.
  • Linearity Tolerance (RP/RH, > 600 to 1,200 mm): Typical ± 30 µm, Max.

UNF/UNC Connection

  • Threaded Flange: 3/4”-16 UNF-3A

Vibration

  • 15 G (10 to 2,000 Hz), IEC 60068-2-6
  • Vibration Resistant: 30 G

Voltage

  • Electric Strength: 500 Vdc (DC Ground to Machine Ground)
