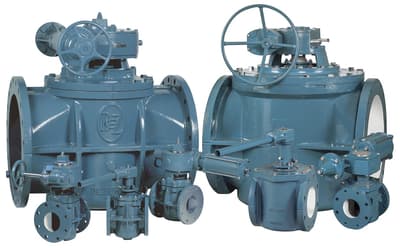

Eccentric Plug Valves (PEC & PEF)

Brand: DeZURIK
Does not ship to OH, United States
DeZURIK Eccentric Plug Valves feature a rectangular port design that provides wide tolerance seating geometry for lasting superior shutoff.

The eccentric plug action and resilient plug facings assure lasting dead-tight shutoff.

Standard features include corrosion-resistant bearings, welded nickel seat, grit excluders, and adjustable stem seal packing.

Port area options include 100% of standard pipe area for applications where highest flow is required (such as pumped systems), and 70/80% area for non-pumped (gravity feed) systems.

The straight-through body design maximizes flow capacity and reduces head loss.

Flanged or mechanical joint end connections are available.

Eccentric Plug Valves are capable of handling clean and dirty liquids and gases, sludge and slurries.
DeZURIK Eccentric Plug Valves feature a rectangular port design that provides wide tolerance seating geometry for lasting superior shutoff.

The eccentric plug action and resilient plug facings assure lasting dead-tight shutoff.

Standard features include corrosion-resistant bearings, welded nickel seat, grit excluders, and adjustable stem seal packing.

Port area options include 100% of standard pipe area for applications where highest flow is required (such as pumped systems), and 70/80% area for non-pumped (gravity feed) systems.

The straight-through body design maximizes flow capacity and reduces head loss.

Flanged or mechanical joint end connections are available.

Eccentric Plug Valves are capable of handling clean and dirty liquids and gases, sludge and slurries.

Specifications

Brand

Body Material

  • Cast Iron, Ductile Iron, Bronze, Aluminum, Carbon Steel, Stainless Steel, Alloy 20, & Monel

Pressure Rating

  • PEC Eccentric Plug Valves:

Shutoff Class

  • Resilient Plug Facing: Drip Tight

Size Range

  • 0.5 - 72” (15 - 1800 mm)

Temperature Range

  • 300° F (150° C)
