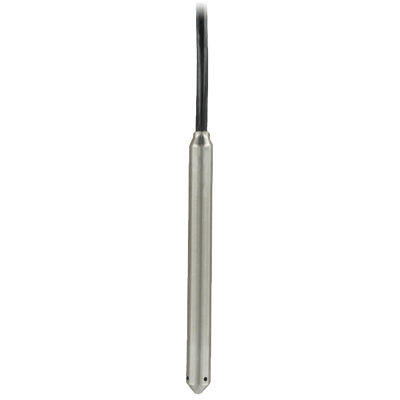

Series MBLT Miniature Submersible Level Transmitter

Brand: Dwyer Instruments, LLC
Does not ship to United States
The MBLT Miniature Submersible Level Transmitter is only 0.63" in diameter making it ideal for level monitoring in well and borehole applications.

Constructed for years of trouble free service, the MBLT has a welded 316 SS body and 316 SS nose cap. Body top is also 316 SS and tapered to prevent damage or snares when pulling the unit out of the installation.

Featured in the MBLT is a precision ±0.10% or ±0.25% of full scale accuracy output, better than BFSL or BSL rated outputs used by most competitors.

Lightning and surge protection (not guaranteed or covered by standard warranty) is included standard to stand up in harsh applications.

MBLT comes with a choice of polyether polyurethane or ETFE cable materials and all are vented for barometric pressure compensation. Vent is covered with a maintenance-free filter preventing particulate or water droplets from entering the transmitter.
Features
  • Slender 0.63˝ (16 mm) diameter design fits in narrow openings
  • Constructed for years of trouble free service with welded 316 Stainless Steel Body and 316 Stainless Steel Nose Cap
  • Body top is 316 Stainless Steel and tapered to prevent damage or snares when pulling the unit out of the installation
  • ±0.10% or ±0.25% Full Scale accuracy output is better than BFSL or BSL rated outputs used by most competitors
  • Maintenance free filter eliminates particulate or water droplets from entering the transducer
  • Comes with a choice of Polyether Polyurethane or ETFE cable materials for excellent chemical compatibility
  • Incorporates lightning and surge protection, eliminating both power supply surges and lightning ground strike transients (surge protection is not guaranteed and is not covered by warranty)
show more
The MBLT Miniature Submersible Level Transmitter is only 0.63" in diameter making it ideal for level monitoring in well and borehole applications.

Constructed for years of trouble free service, the MBLT has a welded 316 SS body and 316 SS nose cap. Body top is also 316 SS and tapered to prevent damage or snares when pulling the unit out of the installation.

Featured in the MBLT is a precision ±0.10% or ±0.25% of full scale accuracy output, better than BFSL or BSL rated outputs used by most competitors.

Lightning and surge protection (not guaranteed or covered by standard warranty) is included standard to stand up in harsh applications.

MBLT comes with a choice of polyether polyurethane or ETFE cable materials and all are vented for barometric pressure compensation. Vent is covered with a maintenance-free filter preventing particulate or water droplets from entering the transmitter.
Features
  • Slender 0.63˝ (16 mm) diameter design fits in narrow openings
  • Constructed for years of trouble free service with welded 316 Stainless Steel Body and 316 Stainless Steel Nose Cap
  • Body top is 316 Stainless Steel and tapered to prevent damage or snares when pulling the unit out of the installation
  • ±0.10% or ±0.25% Full Scale accuracy output is better than BFSL or BSL rated outputs used by most competitors
  • Maintenance free filter eliminates particulate or water droplets from entering the transducer
  • Comes with a choice of Polyether Polyurethane or ETFE cable materials for excellent chemical compatibility
  • Incorporates lightning and surge protection, eliminating both power supply surges and lightning ground strike transients (surge protection is not guaranteed and is not covered by warranty)

Specifications

Accuracy

  • ± 0.10 % of Full Scale Output
  • ± 0.25 % of Full Scale

Approvals & Certifications

  • CE

Cable Length

  • 120 feet (36.6 metres)
  • 150 feet (46 metres)
  • 170 feet (51.8 metres)
  • 216.5 feet (66 metres)
  • 220 feet (67.1 metres)
  • 30 feet (9.14 metres)
  • 348 feet (106 metres)
  • 40 to 59.06 feet (12.2 to 18 metres)
  • 50 feet (15.2 metres)
  • 676 feet (206 metres)
  • 70 feet (21.3 metres)
  • 710 feet (216.4 metres)
  • 85 feet (26 metres)

Cable Material

  • ETFE
  • Polyurethane

Compensated Temperature

  • 0° to 70° C (32° to 158° F)

Electrical Connectors

  • Pigtail with Cable

Electrical Protection

  • Lightning/Surge Protected

Enclosure, Body Material

  • 316 Stainless Steel

Loop Resistance

  • 1,000 ohms at 30 Vdc

Media

  • Compatible Liquids

Output

  • 0-5 V
  • 10 ohms + 4.4 ohms / 100' Cable - Voltage Output
  • 4-20 mA DC

Power Requirement

  • 10 to 33 Vdc - Current Output
  • 5 mA
  • 8 to 33 Vdc - Voltage Output

Pressure Range

  • bar: 0.34 to 20.6
  • ft WC: 11.54 to 690
  • kPa: 34.4 to 2,060
  • psi: 5 to 298.8

Response Time

  • < 50 milliseconds

Seat / Seal Material

  • Fluoroelastomer

Sensor / Probe Diameter

  • 0.63” (16 mm)

Temperature Effect

  • ± 0.30 % of Full Scale
  • ± 0.45 % of Full Scale

Temperature Range

  • -20° to 80° C (-4° to 176° F)

Vent Connection Style

  • Tube Fitting

Wetted Materials

  • Polyolefin

Typical Applications

  • Ballast Tanks
  • Ground Water Monitoring
  • Surface Water Monitoring
  • Dewatering
  • Down Hole
  • Remote Telemetry Applications
  • Remediation and Other Environmental Monitoring Applications
  • Remote Flood Monitoring
  • Narrow Conduit or Pipe Installations
