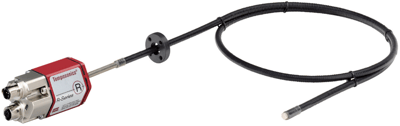

R-Series Rod Model RF Absolute Non-Contact Position Sensor

Brand: Temposonics an Amphenol Company
Does not ship to OH, United States
Temposonics RF with compact housing and broad range of stroke length are user-friendly, modular sensors ideal for harshest continuous operations in the automation industry.

The sensor head accommodates the complete electronic interface with active signal conditioning. Double encapsulation ensures high operating safety and optimum EMC protection.

The passive position transmitter, a permanent magnet, drives contact-lessly over the sensors stroke and starts measuring through the housing wall.

Optimized on high accuracy, engaged the sensor linear measuring displacements up to 20 meters and can be also used for linear measurements on selected radiuses.
Features
  • Rugged industrial sensor
  • Linear and absolute measurement
  • LEDs for sensor diagnostics
  • Contactless sensing with highest durability
  • Direct output for position and velocity
  • Analog / SSI / CANbus / Profibus-DP / EtherCAT / Ethernet/IP/ Powerlink / Profinet
  • Multi-position measurement: maximum 20 positions with 1 sensor
  • Cost-effective shipment for long measuring length
show more
Temposonics RF with compact housing and broad range of stroke length are user-friendly, modular sensors ideal for harshest continuous operations in the automation industry.

The sensor head accommodates the complete electronic interface with active signal conditioning. Double encapsulation ensures high operating safety and optimum EMC protection.

The passive position transmitter, a permanent magnet, drives contact-lessly over the sensors stroke and starts measuring through the housing wall.

Optimized on high accuracy, engaged the sensor linear measuring displacements up to 20 meters and can be also used for linear measurements on selected radiuses.
Features
  • Rugged industrial sensor
  • Linear and absolute measurement
  • LEDs for sensor diagnostics
  • Contactless sensing with highest durability
  • Direct output for position and velocity
  • Analog / SSI / CANbus / Profibus-DP / EtherCAT / Ethernet/IP/ Powerlink / Profinet
  • Multi-position measurement: maximum 20 positions with 1 sensor
  • Cost-effective shipment for long measuring length
Close

Specifications

Brand

Approvals & Certifications

  • CE
  • EMC Electromagnetic (Emission EN 61000-6-4, Immunity EN 61000-6-2), EN 61000-4-2, 3, 4, 6, Level 3/4, Criterium A
  • IEC 60068-2-6

Communication

  • EtherCAT
  • EtherNet/IP
  • PROFIBUS DP
  • PROFINET

Current

  • Current Drain: 100 mA Typical

Display

  • Diagnostic: LEDs Beside Connector

Electrical Connectors

  • Connector or Cable Outlet (Output Dependent)

Electrical Protection

  • Overvoltage Protection: up to 36 Vdc
  • Polarity Protection: up to -30 Vdc

Enclosure, Body Material

  • Sensor Electronics Housing: Aluminum

Environmental Protection

  • Ingress Protection: IP30
  • IP65 Rating Only for Professional Mounted Guide Pipe & if Mating Connectors are Correctly Fitted

Humidity

  • Dew Point: 90 % Relative Humidity, Non-Condensing

Hysteresis

  • < 4 µm

Length

  • Stroke Length: 3.9 to 787.4” (100 to 20,000 mm)

Linearity

  • < ± 0.02 % of Full Scale (Min. ± 100 µm)

Materials of Construction

  • Sensor Stroke: Stainless Steel Conduct with Teflon Coating

Mounting

  • Screw Mount

Operating Temperature

  • -40° to 75° C (-40° to 167° F)

Pressure Rating

  • psi: 10,150 (kPa: 70,000, bar: 700) Peak
  • psi: 5,076 (kPa: 35,000, bar: 350) Static

Repeatability

  • < ± 0.001 % of Full Scale (Min. ± 2.5 µm)

Shock

  • 100 G Single Shock IEC 60068-2-27

Supply Voltage

  • 24 Vdc (-15 / 20 %)

Vibration

  • 5 G (10 to 150 Hz) IEC 60068-2-6

Voltage

  • Electric Strength: 500 Vdc (DC Ground to Machine Ground)
