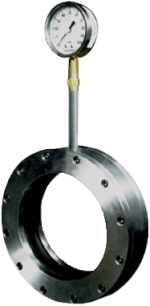

Series 48 Pressure Sensor

Brand: Red Valve Company, Inc
Does not ship to OH, United States
Red Valve’s Series 48 Pressure Sensor protects and isolates instrumentation, eliminating plugging and fouling that can occur in slurry and hard-to-gauge liquid applications.

The economical Series 48 is designed to fit inside the bolt pattern of the pipe flanges, allowing for ease of installation and reducing the size of the unit.

Series 48 Sensors are designed to fit Class 150 and 300 flange drilling, DIN, BS NP10, or any customer specified piping systems.

Reliable, accurate instrument readings are often difficult or even impossible to obtain in pipelines carrying slurry, solids or chemical process.

Standard diaphragm seals are vulnerable to plugging by debris or deposits and only give a pressure  reading from one small area.

With the Series 48 Pressure Sensor these problems are eliminated.

The principle of operation is simple - line pressure is sensed through a flexible rubber sleeve which is a full 360° circumference of the pipe I.D.

The captive fluid is displaced through the Series 48 Pressure Sensor body to the instrument’s Bourdon Tube.

All instrumentation is protected from the process, which assures accurate, repeatable pressure readings.
Features
  • Wafer design reduces costs
  • Protects and isolates instrumentation
  • Fits 150 and 300 lb flanges
  • Light weight design
Red Valve’s Series 48 Pressure Sensor protects and isolates instrumentation, eliminating plugging and fouling that can occur in slurry and hard-to-gauge liquid applications.

The economical Series 48 is designed to fit inside the bolt pattern of the pipe flanges, allowing for ease of installation and reducing the size of the unit.

Series 48 Sensors are designed to fit Class 150 and 300 flange drilling, DIN, BS NP10, or any customer specified piping systems.

Reliable, accurate instrument readings are often difficult or even impossible to obtain in pipelines carrying slurry, solids or chemical process.

Standard diaphragm seals are vulnerable to plugging by debris or deposits and only give a pressure  reading from one small area.

With the Series 48 Pressure Sensor these problems are eliminated.

The principle of operation is simple - line pressure is sensed through a flexible rubber sleeve which is a full 360° circumference of the pipe I.D.

The captive fluid is displaced through the Series 48 Pressure Sensor body to the instrument’s Bourdon Tube.

All instrumentation is protected from the process, which assures accurate, repeatable pressure readings.
Features
  • Wafer design reduces costs
  • Protects and isolates instrumentation
  • Fits 150 and 300 lb flanges
  • Light weight design
Close

Specifications

Brand

Body Material

  • Carbon Steel

Sleeve Material

  • Pure Pure Gum Rubber, Neoprene, Hypalon, Chlorobutyl, EPDM, Buna-N, Viton
  • White Food Grade Elastomer
  • Teflon Coated Buna-N or Teflon Coated Viton

Flange Material

  • 316 Stainless Steel
  • PVC
  • Teflon-Coated Carbon Steel
  • Carbon Steel

Flange

  • 150 & 300 lb

Valve Size

  • 2” to 48”

Fill Fluid

  • Ethylene Glycol and Water
  • Vegetable Oil
  • Silicone Oil
Close

Applications

  • Slurry and Hard-to-Gauge Liquid Applications
