Images are representations only.

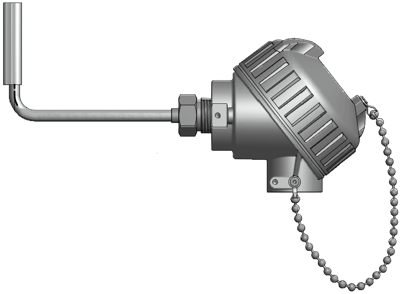

Heat-Tracing Thermocouple Assemblies - Hazardous Location Explosion-Proof-Certified

Brand: Pyromation
Does not ship to United States
Explosion-Proof rated Heat-Tracing Thermocouple assemblies are made for use in systems that measure the surface temperature of process pipe that is carrying products whose temperatures must be controlled to prevent freeze-up, or to maintain a viscosity level so that the inner medium will flow.

They are intended for use in U.S. and Canadian hazardous areas and they are designed to extinguish flames inside the device, eliminating the potential for ignition of flammable mixtures in the surrounding atmosphere.

FM and CSA certified assemblies, meet XP Class I Division I & II; Groups A, B, C, D; DIP Class II Division I; Groups E, F, G; Class III; Type 4/4X.

These Thermocouples are offered in a variety of temperature ranges and are supplied with a 316SS sheath, and a 3/4" radius stainless steel mounting pad.
show more
Explosion-Proof rated Heat-Tracing Thermocouple assemblies are made for use in systems that measure the surface temperature of process pipe that is carrying products whose temperatures must be controlled to prevent freeze-up, or to maintain a viscosity level so that the inner medium will flow.

They are intended for use in U.S. and Canadian hazardous areas and they are designed to extinguish flames inside the device, eliminating the potential for ignition of flammable mixtures in the surrounding atmosphere.

FM and CSA certified assemblies, meet XP Class I Division I & II; Groups A, B, C, D; DIP Class II Division I; Groups E, F, G; Class III; Type 4/4X.

These Thermocouples are offered in a variety of temperature ranges and are supplied with a 316SS sheath, and a 3/4" radius stainless steel mounting pad.

Specifications

Brand

Thermocouple Type

  • Type J, K, T, E

Certifications & Approvals

  • FM
  • CSA

Environmental Protection

  • Type 4/4X

Sheath Length

  • Hot: 3”
  • Cold: 4” to 8”

Head Material

  • Aluminum
  • 316L Stainless Steel
