ER CANopen Magnetostrictive Linear Position Sensor

Brand: Temposonics an Amphenol Company
Does not ship to Virginia, United States
Robust, non-contact and wear free, the Temposonics linear position sensors provide the best durability and precise position measurement feedback in harsh industrial environments.

Measurement accuracy is tightly controlled by the quality of the waveguide manufactured exclusively by MTS Sensors.

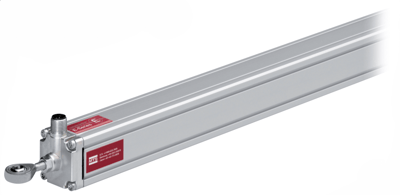

The Temposonics ER has an aluminum rod-and-cylinder design where the rod can extend and retract from the sensor housing to measure linear position.

Inside, a magnet is secured to the end of the rod and remains protected within the sensor electronics housing. Accessory rod ends are available for attaching the rod to the machine’s moving part.

The rod-and-cylinder sensor design can be installed in any orientation, and provides a convenient and versatile position feedback solution.

Typical fields of applications are printing and paper industry, machine tools and plastics industry as well as control systems.
show more
Robust, non-contact and wear free, the Temposonics linear position sensors provide the best durability and precise position measurement feedback in harsh industrial environments.

Measurement accuracy is tightly controlled by the quality of the waveguide manufactured exclusively by MTS Sensors.

The Temposonics ER has an aluminum rod-and-cylinder design where the rod can extend and retract from the sensor housing to measure linear position.

Inside, a magnet is secured to the end of the rod and remains protected within the sensor electronics housing. Accessory rod ends are available for attaching the rod to the machine’s moving part.

The rod-and-cylinder sensor design can be installed in any orientation, and provides a convenient and versatile position feedback solution.

Typical fields of applications are printing and paper industry, machine tools and plastics industry as well as control systems.

Specifications

Approvals & Certifications

  • ISO 9001 (DQS)

Approvals & Certifications

  • CE
  • EMC Electromagnetic Emission EN 61000-6-3, Immunity EN 61000-6-2
  • UL (61010-1)

Communication

  • Baud Rate: 125, 250, 500, 800, 1,000 Kbps
  • CAN (CAN System ISO -11898)

Consumption

  • Current Consumption: 40-60 mA (Depending on Stroke Length)

Electrical Connectors

  • M12 (5-Pin) Male Connector

Electrical Protection

  • Overvoltage Protection: up to 36 Vdc
  • Polarity Protection: up to -30 Vdc

Enclosure, Body Material

  • Sensor Electronics Housing: Aluminum

Environmental Protection

  • Ingress Protection: IP67 (If Mating Connectors are Correctly Fitted)

Humidity

  • 90 % Relative Humidity, Non-Condensing

Length

  • Stroke: 2 to 60” (50 to 1,500 mm)

Linearity

  • ≤ ± 0.02 % of Full Scale (Min. ± 60 µm)

Materials of Construction

  • Guided Driving Rod: Aluminum

Mounting Position

  • Any Orientation

Operating Temperature

  • -40° to 75° C (-40° to 167° F)

Operating Voltages

  • 24 Vdc (-15 / 20 %)

Principle of Operation

  • Magnetostrictive Principle

Repeatability

  • ≤ ± 0.005 % of Full Scale (Min. ± 20 µm)

Resolution

  • 10 µm
  • 20 µm

Shock

  • 100 G (Single Shock) IEC 60068-2-27

UNF/UNC Connection

  • 1/4”-28 UNF Female

Vibration

  • 5 G (10 to 2,000 Hz), IEC 60068-2-6 (Resonance Frequencies Excluded)

Voltage

  • Dielectric Strength: 500 Vdc (DC Ground to Machine Ground)

Applications

  • Control Systems
  • Machine Tools
  • Plastics Industry
  • Printing & Paper Industry
