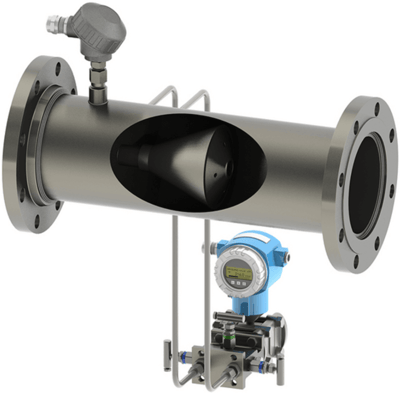

ExactSteam V-Cone System

Brand: McCrometer, Inc
Does not ship to VA, United States
The ExactSteam V-Cone System’s innovative design delivers repeatable accuracy of +0.5% of rate with up to a 50:1 flow range under the most difficult flow conditions.

The ExactSteam V-Cone System acts as its own flow conditioner, fully conditioning and mixing the flow prior to measurement. Readings are always precise and reliable, even under changing flow situations.

With this unique ability to self-condition flow, the ExactSteam V-Cone System virtually eliminates the need for upstream or downstream straight pipe runs. Thus, the ExactSteam V-Cone System can be installed virtually anywhere in a piping system or easily retrofit into an existing piping layout, resulting in significant installation flexibility and cost savings.

In addition, the ExactSteam V-Cone System has proven to provide long-term performance with no moving parts to replace or maintain.
The ExactSteam V-Cone System’s innovative design delivers repeatable accuracy of +0.5% of rate with up to a 50:1 flow range under the most difficult flow conditions.

The ExactSteam V-Cone System acts as its own flow conditioner, fully conditioning and mixing the flow prior to measurement. Readings are always precise and reliable, even under changing flow situations.

With this unique ability to self-condition flow, the ExactSteam V-Cone System virtually eliminates the need for upstream or downstream straight pipe runs. Thus, the ExactSteam V-Cone System can be installed virtually anywhere in a piping system or easily retrofit into an existing piping layout, resulting in significant installation flexibility and cost savings.

In addition, the ExactSteam V-Cone System has proven to provide long-term performance with no moving parts to replace or maintain.

Specifications

Enclosure, Body Material

  • 316 Stainless Steel
  • 316L Stainless Steel
  • Carbon Steel
  • DP Transmitter: Aluminum (F30)

Environmental Protection

  • IP66
  • IP67
  • NEMA 4X
  • NEMA 6P

Flange Material

  • A105 Carbon Steel

Flange Size - 10” (DN 250)

  • 10” (DN 250) - 150# ANSI
  • 10” (DN 250) - 300# ANSI

Flange Size - 12” (DN 300)

  • 12” (DN 300) - 150# ANSI
  • 12” (DN 300) - 300# ANSI

Flange Size - 14” (DN 350)

  • 14” (DN 350) - 150# ANSI
  • 14” (DN 350) - 300# ANSI

Flange Size - 16” (DN 400)

  • 16” (DN 400) - 150# ANSI
  • 16” (DN 400) - 300# ANSI

Flange Size - 18” (DN 450)

  • 18” (DN 450) - 150# ANSI
  • 18” (DN 450) - 300# ANSI

Flange Size - 2” (DN 50)

  • 2” (DN 50) - 150# ANSI
  • 2” (DN 50) - 300# ANSI

Flange Size - 20” (DN 500)

  • 20” (DN 500) - 150# ANSI
  • 20” (DN 500) - 300 ANSI

Flange Size - 24” (DN 600)

  • 24” (DN 600) - 150# ANSI
  • 24” (DN 600) - 300 ANSI

Flange Size - 3” (DN 80)

  • 3” (DN 80) - 150# ANSI
  • 3” (DN 80) - 300# ANSI

Flange Size - 4” (DN 100)

  • 4” (DN 100) - 150# ANSI
  • 4” (DN 100) - 300# ANSI

Flange Size - 6” (DN 150)

  • 6” (DN 150) - 150# ANSI
  • 6” (DN 150) - 300# ANSI

Flange Size - 8” (DN 200)

  • 8” (DN 200) - 150# ANSI
  • 8” (DN 200) - 300# ANSI

NPT Connection

  • 1/2” NPT

Output

  • 4-20 mA
