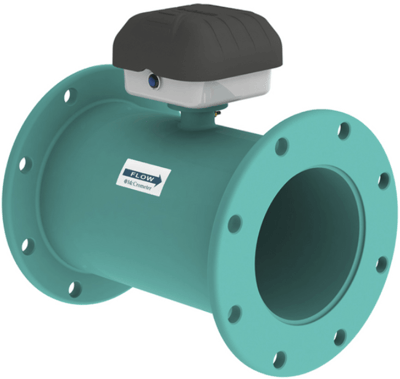

Dura Mag Battery Powered Flanged Electromagnetic Flow Meter
Does not ship to VA, United States
Description
McCrometer’s Dura Mag is the easy choice for tough applications. With a 5-year battery life, Dura Mag eliminates the need for AC power connection while providing the easiest installation possible for a flanged mag flow meter.
The meter is available to fit a common range of irrigation line sizes, from 4" to 12" diameter pipe.
Dura Mag offers accuracy of ±1% with only 2D of upstream and 1D of downstream straight pipe required for most installations, all with the durability that the agricultural market has come to expect from McCrometer for the past 60 years.
Features- Battery powered for easy installation-eliminate the hassle of cables or AC power
- Durable design-Proven in tough environments
- 10 minute DIY replaceable battery pack, keeps your meter running
- 5-year battery life
- Made in the USA
Specifications
Specifications
Brand
Environmental Protection
- IP67
NACE & NIST
- NIST
Pressure Rating
- psi: 150 (kPa: 1,000, bar: 10)
Size
- Pipe Size: 4” to 12” (100 to 300 mm)
