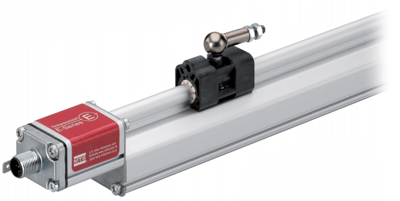

EP/EL Analog Magnetostrictive Linear Position Sensor

Brand: Temposonics an Amphenol Company
Does not ship to OH, United States
Robust, non-contact and wear free, the Temposonics linear position sensors provide the best durability and precise position measurement feedback in harsh industrial environments.

Measurement accuracy is tightly controlled by the quality of the waveguide manufactured exclusively by MTS Sensors.

The compact Temposonics EP as well as the ultra low Temposonics EL are profile sensors suitable for standard applications and in particularly for applications with limited installation space.

The evaluation electronics is accommodated in an aluminum sensor housing. Typical fields of applications are plastics industry, metal forming and woodworking as well as factory automation.
Robust, non-contact and wear free, the Temposonics linear position sensors provide the best durability and precise position measurement feedback in harsh industrial environments.

Measurement accuracy is tightly controlled by the quality of the waveguide manufactured exclusively by MTS Sensors.

The compact Temposonics EP as well as the ultra low Temposonics EL are profile sensors suitable for standard applications and in particularly for applications with limited installation space.

The evaluation electronics is accommodated in an aluminum sensor housing. Typical fields of applications are plastics industry, metal forming and woodworking as well as factory automation.
Close

Specifications

Brand

Approvals & Certifications

  • CE
  • EMC Electromagnetic Emission EN 61000-6-3, Immunity EN 61000-6-2
  • UL 61010-1

Approvals & Certifications

  • ISO 9001 (DQS)
  • QPS (C, US)

Consumption

  • Current Consumption: 50-140 mA

Current

  • 20-4 mA
  • 4-20 mA

Electrical Connectors

  • M12 (5-Pin) Male Connector

Electrical Protection

  • Overvoltage Protection: up to 36 Vdc
  • Polarity Protection: up to -30 Vdc

Enclosure, Body Material

  • Sensor Electronics: Aluminum

Environmental Protection

  • Ingress Protection: IP67 (If Mating Connectors are Correctly Fitted)

Humidity

  • 90 % Relative Humidity, Non-Condensing

Length

  • Stroke Length: 2 to 100” (50 to 2,540 mm)

Linearity

  • Block Magnet: ≤ ± 0.03 % (Min. ± 90 µm)
  • Magnet Slider, U-Magnet: ≤ ± 0.02 % of Full Scale (Min. ± 60 µm)

Load

  • 0 to 500 ohms for Current Output

Materials of Construction

  • Sensor Profile: Aluminum

Mounting

  • Clamp Mounting

Mounting Position

  • Any Orientation

Operating Temperature

  • -40° to 75° C (-40° to 167° F)

Operating Voltages

  • 24 Vdc (-15 / 20 %)

Output

  • 0-10 Vdc
  • 10-0 Vdc
  • 20-4 mA
  • 4-20 mA

Principle of Operation

  • Magnetostrictive Principle

Repeatability

  • ≤ ± 0.005 % of Full Scale (Min. ± 20 µm)

Resistance

  • Controller Input Resistance: > 5 kiloohms for Voltage Output

Resolution

  • Infinite

Shock

  • 100 G (Single Shock) IEC 60068-2-27

Vibration

  • 15 G (10 to 2,000 Hz), IEC 60068-2-6 (Resonance Frequencies Excluded)

Voltage

  • Dielectric Strength: 500 Vdc (DC Ground to Machine Ground)
