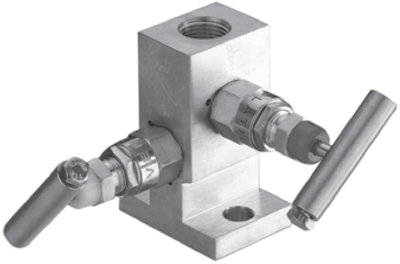

EM50 Gauge Pressure Manifold Valve

Brand: Hex Valve
Does not ship to VA, United States
The EM50 is a single flanged, static pressure manifold that incorporates a block valve and a vent valve into a single valve assembly.

The side vent outlet is plugged, allowing removal during maintenance, or the installation of a calibration fitting.

The compact and economical EM50 features a threaded inlet and flanged outlet, allowing the transmitter to bolt directly to the manifold.

The lightweight design requires two transmitter bolts permitting rapid assembly to the transmitter.
The EM50 is a single flanged, static pressure manifold that incorporates a block valve and a vent valve into a single valve assembly.

The side vent outlet is plugged, allowing removal during maintenance, or the installation of a calibration fitting.

The compact and economical EM50 features a threaded inlet and flanged outlet, allowing the transmitter to bolt directly to the manifold.

The lightweight design requires two transmitter bolts permitting rapid assembly to the transmitter.

Specifications

Enclosure, Body Material

  • 316 Stainless Steel - NACE
  • Hastelloy C
  • Monel

NACE & NIST

  • NACE

NPT Inlet

  • 1/2” NPT Female

Packing Material

  • Graphite
  • Teflon

Seat / Seal Material

  • Gland Seal: PTFE

Valves

  • Two
