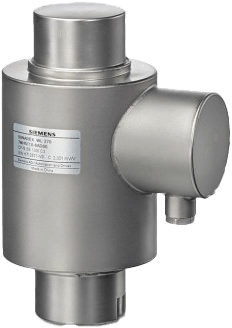

SIWAREX WL270 CP-S SB Compression Load Cell

Brand: Siemens AG
Does not ship to OH, United States
SIWAREX WL270 CP-S SB compression load cell has a rated load of 100t suitable for high load container scales and truck scales.

The load cell is made of stainless steel and has IP68 rating for use in harsh environments.

The SIWAREX WL270 CP-S SB comes with an accuracy class C3 according to OIML R60.
Features
  • Quick and simple installation with SIWAREX mounting devices
  • Option for use in hazardous areas are in preparation
SIWAREX WL270 CP-S SB compression load cell has a rated load of 100t suitable for high load container scales and truck scales.

The load cell is made of stainless steel and has IP68 rating for use in harsh environments.

The SIWAREX WL270 CP-S SB comes with an accuracy class C3 according to OIML R60.
Features
  • Quick and simple installation with SIWAREX mounting devices
  • Option for use in hazardous areas are in preparation
Close
Close

Specifications

Brand

Sensor Material (DIN)

  • Stainless Steel EN 1.4542

Rated Load

  • 100 t

Accuracy Class

  • C3

Resolution

  • 9,000

Environmental Protection

  • IP68

Supply Voltage

  • Recommended: 5-12 Vdc

Rated Temperature Range

  • -10° to +40° C

Operating Temperature

  • -35° to +65° C

Storage Temperature

  • -35° to +65° C
Close

Applications

  • Hopper Scales
