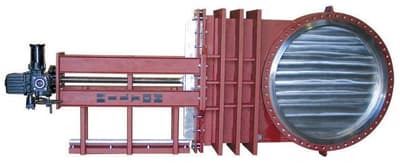

H-200 Bonnetless Knife Gate Valve

Brand: Hilton
Does not ship to OH, United States
Fabricated Bonnet-less Gate Valves can be built to US or International Standards.

Available with wafer or special extended face-to-face dimensions for replacement of existing valves.
Fabricated Bonnet-less Gate Valves can be built to US or International Standards.

Available with wafer or special extended face-to-face dimensions for replacement of existing valves.
Close

Specifications

Brand

Actuator Type

  • Handwheel, Chainwheel, Bevel Gear, Cylinder, Electric Motor

Materials

  • Solid Alloy or Alloy Wetted Parts Construction. Available in Any Weldable Alloy Including Stainless Steel, Hastelloy, Inconel, Monel or Titanium. Optional Abrasion & Corrosion Resistant Designs with Hard Facing Available.

Pressure Rating

  • 25-300 psi (170-2070 kPa)

Seating

  • Metal or Resilient with Options for Removable Seat, Inflatable Seal or Grease Seal

Size Range

  • Through 144” (To 3700 mm)

Temperature Range

  • -40° to 2000° F
