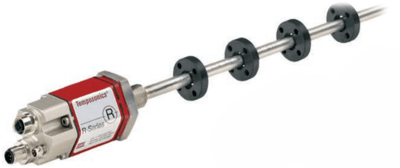

R-Series Profibus Absolute Non-Contact Position Sensor

Brand: Temposonics an Amphenol Company
Does not ship to OH, United States
Temposonics sensors fulfill all requirements of PROFIBUS-DP (EN 50170).

The sensor realizes the absolute position measuring with direct transmission of serial, bit synchronous data in RS485 standard to control units in a baud rate of 12 Mbit/s maximum.

PROFIBUS interface is built-up with Siemens bus controller SPC3. In addition to applications data transmission, PROFIBUS provides powerful functions for diagnostics and configuration, loaded into the bus via the GSD.
Features
  • Rugged industrial sensor
  • Linear and absolute measurement
  • LEDs for sensor diagnostics
  • Non-contact sensing with highest durability
  • Direct Profibus-DP output, position + velocity
  • Multi-position measurement: 1 sensor for maximum 20 positions
show more
Temposonics sensors fulfill all requirements of PROFIBUS-DP (EN 50170).

The sensor realizes the absolute position measuring with direct transmission of serial, bit synchronous data in RS485 standard to control units in a baud rate of 12 Mbit/s maximum.

PROFIBUS interface is built-up with Siemens bus controller SPC3. In addition to applications data transmission, PROFIBUS provides powerful functions for diagnostics and configuration, loaded into the bus via the GSD.
Features
  • Rugged industrial sensor
  • Linear and absolute measurement
  • LEDs for sensor diagnostics
  • Non-contact sensing with highest durability
  • Direct Profibus-DP output, position + velocity
  • Multi-position measurement: 1 sensor for maximum 20 positions

Specifications

Approvals & Certifications

  • EMC Electromagnetic (Emission EN 61000-6-4, Immunity EN 61000-6-2), EN 61000-4-2, 3, 4, 6, Level 3/4, Criterium A
  • EN 61000-4-2, 3, 4, 6, Level 3/4, Criterium A, CE-Qualified
  • IEC 61158 CPF3 PROFIBUS
  • UL 61010-1

Communication

  • Data Format: PROFIBUS DP Slave (IEC 61158 CPF3)
  • Data Transmission Rate: Max.

Current

  • Current Drain: 90 mA Typical

Display

  • LED Diagnostic Display Beside Connector

Electrical Connectors

  • 2 metres PUR-Cable without Connector
  • 2 x 5-Pin Male/Female Receptacle M12
  • 2 x 6-Pin Male/Female Receptacle M16
  • 4-Pin Male Receptacle M8

Electrical Protection

  • Overvoltage Protection: up to 36 Vdc
  • Polarity Protection: up to -30 Vdc

Environmental Protection

  • Ingress Protection (Profile): IP65
  • Ingress Protection (Rod): IP67
  • Ingress Protection RS: IP69K

Humidity

  • Dew Point, Humidity: 90 % Relative Humidity, Non-Condensing

Hysteresis

  • < 4 µm

Length

  • Stroke Length (Profile): 0.98 to 196.9” (25 to 5,000 mm)
  • Stroke Length (Rod): 0.98 to 299.2” (25 to 7,600 mm)

Linearity

  • < ± 0.01 % of Full Scale (Min. ± 50 µm)

Linearization

  • Internal Linearization: ± (20 to 70 µm) = 100 to 5,000 mm ML

Materials of Construction

  • Rod with Flange: AISI 304 Stainless Steel 1.4301 - Rod Model
  • Sensor Stroke (Profile), Sensor Head: Aluminum

Metric Connection

  • Threaded Flange M18 x 1.5

Mounting

  • Profile: Movable Mounting Clamp
  • Profile: T-Slot Nuts M5” Base Channel
  • Rod: Hex Nut M18
  • U-Magnet, Removable & Position Magnet: Plate Mounting
  • U-Magnet, Removable & Position Magnet: Screw Mount from Antimagnetical Material

Mounting Position

  • Any Orientation

Operating Temperature

  • -40° to 75° C (-40° to 167° F)

Pressure Rating

  • psi: 10,150 (kPa: 70,000, bar: 700) Peak for Hydraulic Rod
  • psi: 5,076 (kPa: 35,000, bar: 350)

Repeatability

  • < ± 0.001 % of Full Scale (Min. ± 2.5 µm)

Resolution

  • Position: 1 µm / Other Values Selectable Via GSD-File
  • Speed 5 µm Position Resolution: 0.14 mm/sec up to 7,600 mm
  • Speed 5 µm Position Resolution: 0.21 mm/sec up to 4,500 mm
  • Speed 5 µm Position Resolution: 0.43 mm/sec up to 2,000 mm
  • Speed 5 µm Position Resolution: 0.64 mm/sec up to 500 mm

Seat / Seal Material

  • Seal: Oil-Resistant Sensor with FPM

Shock

  • 100 G Single Hit, IEC 60068-2-27

Supply Voltage

  • 24 Vdc (-15 / 20 %)

Temperature Coefficient

  • < 15 ppm/°C

Tolerance

  • Linearity Tolerance (RP, 1,200 to 3,000 mm): Typical ± 45 µm, Max.
  • Linearity Tolerance (RP, 3 to 5 m): Typical ± 85 µm, Max.
  • Linearity Tolerance (RP/RH, 300 to 600 mm): Typical ± 20 µm, Max.
  • Linearity Tolerance (RP/RH, > 600 to 1,200 mm): Typical ± 30 µm, Max.

UNF/UNC Connection

  • Threaded Flange: 3/4”-16 UNF-3A

Vibration

  • 15 G (10 to 2,000 Hz), IEC 60068-2-6

Voltage

  • Electric Strength: 500 Vdc (DC Ground to Machine Ground)
