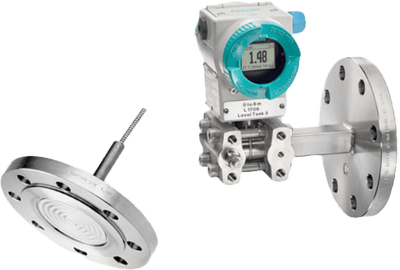

Flange Design Fixed Connection and with Capillary Diaphragm Seals

Brand: Siemens AG
Does not ship to OH, United States

Specifications

Connecting Standard EN 1092-1

  • DN 40
  • DN 50
  • DN 80
  • DN 100
  • DN 125
  • PN 10/16/25/40/63/100/160

Connecting Standard ASME B16.5

  • 1-1/2 inch
  • 2 inch
  • 3 inch
  • 4 inch
  • 5 inch
  • Class 150/300/400/600/900/1500

Connecting Standard J.I.S.

  • DN 50
  • DN 80
  • DN 100
  • 10K
  • 20K
  • 40K

For Stainless Steel, Material Number 1.4404/316L

  • To EN 1092-1, form B1 or ASME B16.5 RF 125 ... 250 AA

For the other Materials

  • To EN 1092-1, form B2 or ASME B16.5 RFSF

Main Body Materials

  • Stainless Steel, 1.4404/316L

Wetted Parts Materials

  • Stainless Steel, 1.4404/316L without coating
  • Stainless Steel, 1.4404/316L PTFE coating
  • Stainless Steel, 1.4404/316L ECTFE coating for vacuum on request
  • Stainless Steel, 1.4404/316L PFA coating
  • Monel 400, mat. no. 2.4360
  • Hastelloy C-276, mat. no. 2.4819
  • Hastelloy C-4, mat. no. 2.4602
  • Hastelloy C-22, W.-Nr. 2.4602
  • Tantalum
  • Titanium, W.-Nr. 3.7035
  • Nickel 201
  • Duplex 2205, mat. no. 1.4462
  • 316L Stainless Steel, gold-plated, thickness approx. 25 μm
  • Stainless Steel, mat. no. 1.4571/316Ti
  • Spiral protective tube made of stainless steel, mat. no. 1.4301/304

Sealing Material in the Process Flanges

  • Copper
  • Viton

Tube Length

  • Without tube
  • 50 mm - 1.97 inch
  • 100 mm - 3.94 inch
  • 150 mm - 5.91 inch
  • 200 mm - 7.87 inch

Capillary Length

  • Maximum 10 m
  • 32.8 ft
  • Longer lengths on request

Internal Diameter

  • 2 mm
  • 0.079 inch

Minimum Bending Radius

  • 150 mm
  • 5.9 inch

Filling Liquid

  • Silicone oil M5
  • Silicone oil M50
  • High-Temperature oil
  • Halocarbon oil for measuring O₂
  • Food oil - FDA listed

Maximum Recommended Process Temperature

  • 170° C
  • 338° F

Permissible Ambient Temperature

  • Dependent on the pressure transmitter and the filling liquid of the remote sea

Weight

  • Approx. 4 kg
  • 8.82 lb

Certificates & Approvals

  • Classification according to pressure equipment directive
  • DGRL 2014/68/EU
