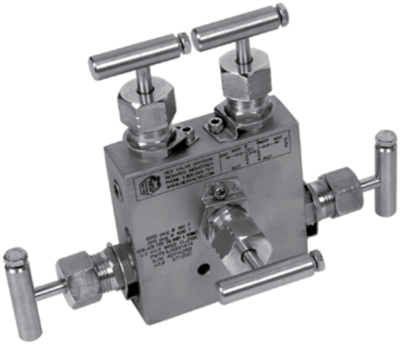

PM75/PM76 Five-Valve Differential Pressure Manifold Valve

Brand: Hex Valve
Does not ship to OH, United States
The PM75 is designed for remote mounting of differential pressure transmitters.

Design includes two isolation valves, one test valve, and two test/purge valves.

The manifold can be mounted via a pipe stand or instrument rack.

The 1/2" process connection is located on bottom of manifold and instrument connection is located on back.

PM76 is similar to the PM75 Series but is designed for direct mounting to transmitter by unique wafer design.

The compact design eliminates the requirement for additional tubing or piping from manifold to transmitter.
Features
  • The Hex Power Valves conform to the power standards ANSI B31.1 and B31.3 specifications
  • Hex Valves are 100% hydro-tested to the ANSI B31.1 standard before being shipped
  • Hex bonnets come standard with safety clamp to prevent loosening and are "Back Seated"
  • Hex valves have large robust handles and stems for durability and long life
The PM75 is designed for remote mounting of differential pressure transmitters.

Design includes two isolation valves, one test valve, and two test/purge valves.

The manifold can be mounted via a pipe stand or instrument rack.

The 1/2" process connection is located on bottom of manifold and instrument connection is located on back.

PM76 is similar to the PM75 Series but is designed for direct mounting to transmitter by unique wafer design.

The compact design eliminates the requirement for additional tubing or piping from manifold to transmitter.
Features
  • The Hex Power Valves conform to the power standards ANSI B31.1 and B31.3 specifications
  • Hex Valves are 100% hydro-tested to the ANSI B31.1 standard before being shipped
  • Hex bonnets come standard with safety clamp to prevent loosening and are "Back Seated"
  • Hex valves have large robust handles and stems for durability and long life
Close

Specifications

Brand

Enclosure, Body Material

  • Carbon Steel (ASTM A105)
  • Stainless Steel (ASTM A479-316)

NPT Inlet

  • 1/2” NPT Female
  • 1/2” NPT Male
  • 3/4” NPT Male

NPT Outlet

  • 1/2” NPT Female

Packing Material

  • Grafoil
  • Graphite

Pressure Range

  • bar: 0 to 413.7
  • kPa: 0 to 41,370
  • psi: 0 to 6,000

Valves

  • Five

Welded Inlet

  • 1/2” Socket Weld End Male
  • 3/4” Socket Weld End Male
