Series BGM Bar Graph Meter

Brand: Dwyer Instruments, LLC
Does not ship to VA, United States

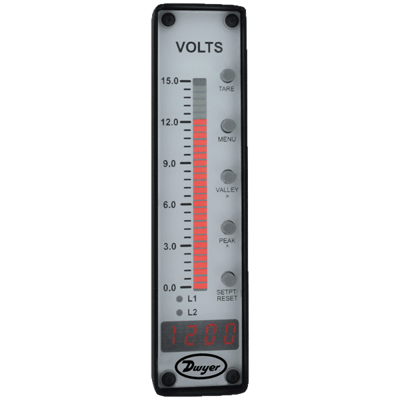

The Series BGM Digital Bar Graph Meter is extremely durable and can replace a wide range of analog meters.

The 4-digit display will significantly reduce the potential for human error in reading by eliminating errors commonly produced by the viewing angle when reading analog meters.

This series has a key pad that allows for easy access of features without complex menu structures. With the combined ability to create a wide range of custom faceplate and the optional NEMA 4X bezel, the Series BGM can be used in a variety of applications.

The LED bar graph adds a visual indicator of the measured value so that it can be visually analyzed, preventing accidents or system failures from happening.
Features
  • Bar Graph Visual Indicator
  • High Resolution for Better Precision
  • Many Configurable Options to Design a Meter for Any Need
The Series BGM Digital Bar Graph Meter is extremely durable and can replace a wide range of analog meters.

The 4-digit display will significantly reduce the potential for human error in reading by eliminating errors commonly produced by the viewing angle when reading analog meters.

This series has a key pad that allows for easy access of features without complex menu structures. With the combined ability to create a wide range of custom faceplate and the optional NEMA 4X bezel, the Series BGM can be used in a variety of applications.

The LED bar graph adds a visual indicator of the measured value so that it can be visually analyzed, preventing accidents or system failures from happening.
Features
  • Bar Graph Visual Indicator
  • High Resolution for Better Precision
  • Many Configurable Options to Design a Meter for Any Need

Specifications

Accuracy

  • ± 0.05 % of Full Scale

Bezel Material

  • Black Epoxy Enameled Steel

Consumption

  • 1.2 W at 100 mA - Max.
  • 1.5 W at 50 mA - Max.
  • 2.4 W at 20 mA - Max.

Display

  • 0.2” W x 3.1” L (5.08 mm W x 78.74 mm L) 31 element bar - LED Graph
  • 4-Digit LED (Red Colored), 0.3' Height

Electrical Connectors

  • Removable Screw Terminal Blocks

Electrical Rating

  • 1 A at 200 V

Enclosure, Body Material

  • 304 Stainless Steel - Mounting Bracket

Environmental Protection

  • IP65
  • NEMA 1
  • NEMA 4X

Input

  • 0- ± 10 Vdc
  • 4-20 mA

Length

  • Scale: 0 to 100

Mounting Position

  • Horizontal
  • Vertical

Operating Temperature

  • -25° to 80° C (-13° to 176° F)

Power Requirement

  • 10-30 Vdc
  • 120 Vac
  • 50/60 Hz
  • 5-12 Vdc

Response Time

  • 0.5 second

Storage Temperature

  • -55° to 80° C (-67° to 176° F)

Switch Type

  • 2 SPST Relay Outputs

Window Material

  • Acrylic

Applications

  • Visual location and indication of flow, level or air velocity
