Description

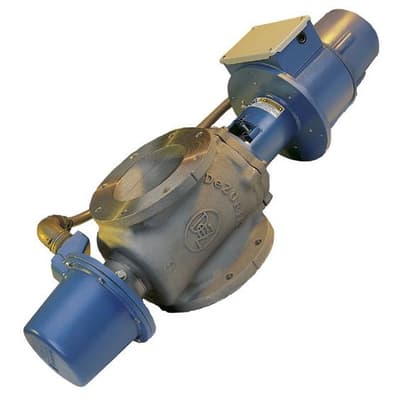

DeZURIK’s Precision Electric Control Valve is recognized industry wide as the most accurate and reliable basis weight control valve available.
This high-resolution control valve is specifically designed for critical paper stock control, and is used for basis weight and head box level control applications.
It provides unmatched control accuracy, positioning and repeatability with up to 7760 repeatable positions.
The Precision Electric Valve accepts digital or analog signals.
It features total electric operation with backlash that is essentially zero. Flange drilling is per ASME standards.
Specifications
Specifications
Brand
Actuator Type
- AC Synchronous Motor
Body Material
- 316 Stainless Steel
Feedback Mechanisms
- Potentiometer & Resolvers
Plug Type
- V-Port Concentric or Straight Concentric
Pressure Rating
- 275 psi (1890 kPa) CWP
Size Range
- 4 - 20” (100 - 500 mm)
Temperature Range
- 32°F to 450°F (0°C to 232°C)
