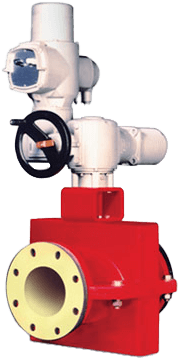

Series 5200E Control Pinch Valve

Brand: Red Valve Company, Inc
Does not ship to OH, United States
The electrically actuated Series 5200E Control Valve is a reliable, maintenance-free, cost-effective valve, designed for tough slurry and abrasive applications.

There are no seats to grind, no stuffing boxes to repack, and no packing glands to adjust.

The rugged, self-cleaning elastomer sleeve isolates all mechanical parts of the valve, so the breakaway torque remains constant.

Red Valve Series 5200E Valves are actuated by AUMA, Rotork or Limitorque electric operators as a standard - and include heaters, thermostats, position indicators and indication lights.

Other electric motor operators are available on specific requests. Declutch and override components are furnished as standard.

Controls can be furnished as an integral part of the electric operator or as a separate unit for a remote station.

 Optional features include NEMA-7 explosion-proof construction, proportioning control from a 4- 20 mA instrument signal and 4-20 mA output transmitter.
Features
  • Provides immediate control response
  • Accurate, repeatable linear flow control
  • Sleeve trim options match flow needs
  • High cycle life, repeatable control
  • Sleeve is the only part in contact with the media
  • Eliminates need for expensive body materials
  • External stroke adjustment
  • Bi-directional, drop-tight shut off
The electrically actuated Series 5200E Control Valve is a reliable, maintenance-free, cost-effective valve, designed for tough slurry and abrasive applications.

There are no seats to grind, no stuffing boxes to repack, and no packing glands to adjust.

The rugged, self-cleaning elastomer sleeve isolates all mechanical parts of the valve, so the breakaway torque remains constant.

Red Valve Series 5200E Valves are actuated by AUMA, Rotork or Limitorque electric operators as a standard - and include heaters, thermostats, position indicators and indication lights.

Other electric motor operators are available on specific requests. Declutch and override components are furnished as standard.

Controls can be furnished as an integral part of the electric operator or as a separate unit for a remote station.

 Optional features include NEMA-7 explosion-proof construction, proportioning control from a 4- 20 mA instrument signal and 4-20 mA output transmitter.
Features
  • Provides immediate control response
  • Accurate, repeatable linear flow control
  • Sleeve trim options match flow needs
  • High cycle life, repeatable control
  • Sleeve is the only part in contact with the media
  • Eliminates need for expensive body materials
  • External stroke adjustment
  • Bi-directional, drop-tight shut off
Close

Specifications

Brand

Body Material

  • Ductile Cast Iron

Sleeve Material

  • Pure Gum Rubber, Neoprene, Hypalon, Chlorobutyl, Buna-N, EPDM and Viton

Valve Size

  • 1” to 48”

Drilled and Tapped Flange

  • ANSI 150#
  • ANSI B16.1 125# Cast Flange
  • AWWA C110 125# Flange
  • EN 1092 PN 6, 10 & 16
  • JIS 5K, 10K

Actuator

  • Auma
  • Rotork
  • Limitorque

Environmental Protection

  • NEMA 7

Operating Pressure

  • 50 to 150 psi
