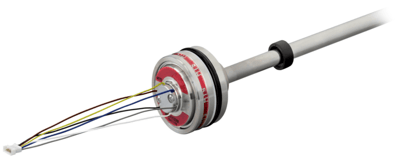

EE Analog Magnetostrictive Linear Position Sensor

Brand: Temposonics an Amphenol Company
Does not ship to OH, United States
Robust, non-contact and wear free, the Temposonics linear position sensors provide best durability and accurate position measurement solutions in harsh industrial environments.

The position measurement accuracy is tightly controlled by the quality of the waveguide which is manufactured by MTS Sensors. The Temposonics E-Series EE position sensor is designed for the installation into a hydraulic cylinder.

Because of his compact design the EE sensor is the perfect solution for small cylinders with limited space for the integration in a measuring system.

The increased operating temperature capability allows the sensor to be used in a wide range of industrial applications.
show more
Robust, non-contact and wear free, the Temposonics linear position sensors provide best durability and accurate position measurement solutions in harsh industrial environments.

The position measurement accuracy is tightly controlled by the quality of the waveguide which is manufactured by MTS Sensors. The Temposonics E-Series EE position sensor is designed for the installation into a hydraulic cylinder.

Because of his compact design the EE sensor is the perfect solution for small cylinders with limited space for the integration in a measuring system.

The increased operating temperature capability allows the sensor to be used in a wide range of industrial applications.
Close

Specifications

Brand

Approvals & Certifications

  • ISO 9001 (DQS)

Approvals & Certifications

  • CE
  • EMC Electromagnetic Emission EN 55011, Class B: 2009 + A1: 2010, Immunity EN 61326-1: 2006

Cable Length

  • 4.3 to 24” (110 to 610 mm)

Consumption

  • Current Consumption: 50-140 mA

Electrical Connectors

  • 6-Pin Molex PicoBlade Connector System

Electrical Protection

  • Overvoltage Protection: up to 36 Vdc
  • Polarity Protection: up to -30 Vdc

Enclosure, Body Material

  • Sensor Electronics Housing: AISI 303 Stainless Steel 1.4305

Environmental Protection

  • Ingress Protection: IP67 (with Professional Mounted Housing & Connectors)
  • Ingress Protection: Sensor with Flat Connector IP30

Humidity

  • 90 % Relative Humidity, Non-Condensing

Length

  • Stroke: 2 to 100” (50 to 2,540 mm)

Linearity

  • ≤ ± 0.02 % of Full Scale (Min. ± 60 µm)

Load

  • 0 to 500 ohms for Current Output

Materials of Construction

  • Sensor Rod: 304L Stainless Steel 1.4306

Operating Pressure

  • psi: 0 to 5,076 (kPa: 0 to 35,000, bar: 0 to 350)

Operating Temperature

  • -40° to 85° C (-40° to 185° F)

Operating Voltages

  • 24 Vdc (-15 / 20 %)

Output

  • 20-4 mA
  • 4-20 mA

Principle of Operation

  • Magnetostrictive Principle

Repeatability

  • < ± 0.002 % of Full Scale (Min. ± 20 µm)

Resolution

  • Infinite

Shock

  • 100 G (Single Shock) IEC 60068-2-27

Vibration

  • 15 G (10 to 2,000 Hz), IEC 60068-2-6 (Resonance Frequencies Excluded)

Voltage

  • Dielectric Strength: 500 Vdc (0 V Ground to Machine Ground)
Close

Applications

  • Industrial Applications
  • Wood Working
